1
Engine displacement
1000
2
Model
TUONO
3
Year
2003
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Water coolers
6
Parts Diagram
Parts Catalog
Crankshaft II
by
Exhaust pipe
Water coolers
1
1
2
3
4
5
5
6
6
7
7
8
8
9
9
9
9
10
10
11
11
11
12
12
13
14
15
15
16
16
1
Collier serr. Tube;
AP8104097
$5,38 Unit Price incl. VAT
2
Water cooler, RH black
AP8102952
Not Available
3
Water cooler, LH black
AP8102951
Not Available
4
Tuyau eau radiateurs
AP8120981
$8,91 Unit Price incl. VAT
5
Fan, cpl.
AP8124855
Not Available
6
Rondelle
AP8152184
$3,65 Unit Price incl. VAT
7
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
8
"Douille en ""T"" *"
AP8221023
$0,93 Unit Price incl. VAT
9
Caoutchouc
AP8112600
$4,49 Unit Price incl. VAT
10
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
11
Ecrou
AP8150026
$0,16 Unit Price incl. VAT
12
Silentbloc
AP8101372
$4,62 Unit Price incl. VAT
13
RH water cooler protection, c.
AP8168804
Not Available
13
Radiateur protection d.;
AP8168224
$30,28 Unit Price incl. VAT
13
RH water cooler protection, c.
AP8179032
Not Available
13
RH water cooler protection, c.
AP8168067
Not Available
14
LH water cooler protection, c.
AP8179033
Not Available
14
LH water cooler protection, c.
AP8168068
Not Available
14
Radiateur protection g.;
AP8168225
$30,28 Unit Price incl. VAT
14
LH water cooler protection, c.
AP8168805
Not Available
15
Vis bride
AP8152280
$0,25 Unit Price incl. VAT
15
Screw M6x25
AP8152422
$6,60 Unit Price incl. VAT
16
Bush
AP8152436
Not Available

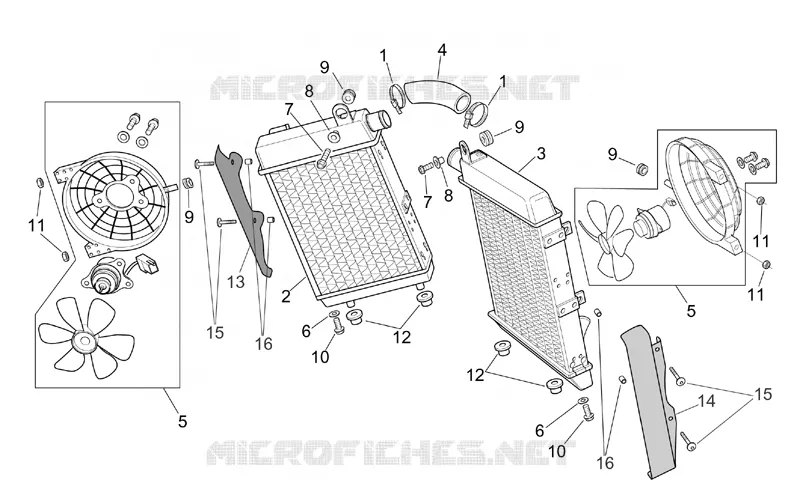

Find the detailed Water coolers APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
