Parts Catalog
Handlebar
6
Parts Diagram
Parts Catalog
Rear body - Rear fairing
by
Acc. - Special body parts
Handlebar
1
1
2
3
3
4
5
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
20
1
Masse antivibratile n
AP8104509
$8,06 Unit Price incl. VAT
2
Guidon
AP8118678
$527,34 Unit Price incl. VAT
3
Rearview mirror
AP8104511
Not Available
3
Rearview mirror
AP8104566
Not Available
4
Collier;
AP8121608
$63,18 Unit Price incl. VAT
4
Handlebar collar
AP8121622
Not Available
5
Handlebar stem Ergal
AP8134891
Not Available
5
Handlebar stem
AP8134907
$55,19 Unit Price incl. VAT
6
Term.poids antivib.
AP8121520
$6,73 Unit Price incl. VAT
7
Vis
AP8150508
$3,65 Unit Price incl. VAT
8
Couple manettes, noir;
AP8118501
$20,52 Unit Price incl. VAT
9
Vis tspei inox
AP8150472
$4,62 Unit Price incl. VAT
10
Vis calotte;
AP8118492
$3,65 Unit Price incl. VAT
11
Cavalier AR. commande gaz;
AP8118567
$14,30 Unit Price incl. VAT
12
Front gas lever U-bolt
AP8118566
Not Available
13
LH lights selector
AP8127069
Not Available
13
LH lights selector
AP8127538
Not Available
14
Choke control
AP8118470
Not Available
15
Engine stop-start device
AP8118580
Not Available
16
Câble fermeture gaz;
AP8114405
$53,16 Unit Price incl. VAT
17
Gas trasmission delivery
AP8114404
Not Available
18
Choke cable
AP8114359
Not Available
19
Vis
AP8150170
$0,27 Unit Price incl. VAT
19
Vis tcc
AP8152427
$6,60 Unit Price incl. VAT
20
Vis bride
AP8152320
$1,08 Unit Price incl. VAT

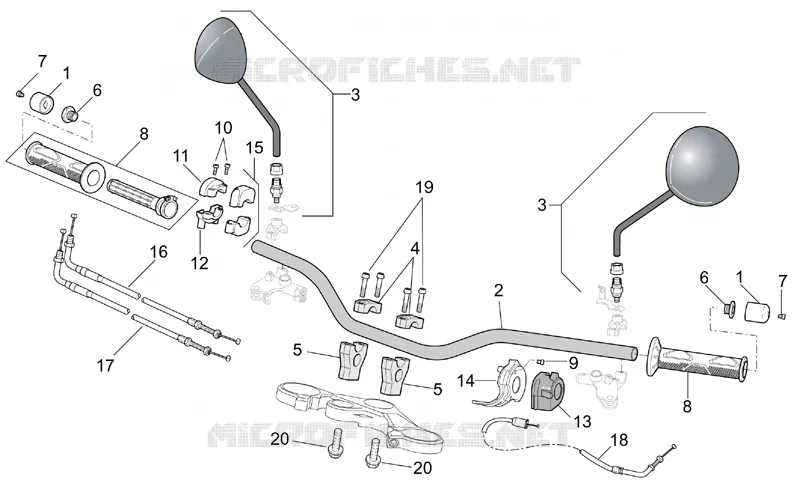

Find the detailed Handlebar APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
