1
Engine displacement
1000
2
Model
TUONO
3
Year
2003
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Central electrical system
6
Parts Diagram
Parts Catalog
Acc. - Various
by
Acc. - Performance parts III
Central electrical system
1
2
2
3
4
5
6
7
8
9
9
10
11
11
12
12
13
13
14
14
15
16
17
18
18
19
20
21
22
23
24
25
1
Capuchon borne
AP8120218
$5,38 Unit Price incl. VAT
2
HT coil
AP0265480
$284,50 Unit Price incl. VAT
3
Main wiring harness
AP8127492
Not Available
3
Main wiring harness
AP8127428
Not Available
3
Main wiring harness
AP8127465
Not Available
3
Main wiring harness
AP8127396
Not Available
4
Ext.sparkplug cap
AP0265244
Not Available
5
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
6
Vis
AP8152123
$3,65 Unit Price incl. VAT
7
Voltage regulator
AP8124267
Not Available
8
Ecrou
AP8150026
$0,16 Unit Price incl. VAT
9
Spring washer 6,4x11x0,5*
AP8150429
Not Available
10
Vis bride
AP8152282
$0,51 Unit Price incl. VAT
11
Ecrou autofr. bas
AP8150451
$0,17 Unit Price incl. VAT
12
Rondelle
AP8150012
$5,38 Unit Price incl. VAT
13
Caoutchouc
AP8120405
$5,38 Unit Price incl. VAT
14
"Douille en ""T"""
AP8121736
$3,65 Unit Price incl. VAT
15
Relay-starter motor cable
AP8124269
Not Available
16
Ground-battery lead
AP8112832
Not Available
17
Microinterrupteur
AP8112996
$30,28 Unit Price incl. VAT
18
Screw w/ flange M5x25
AP8152275
Not Available
19
Int.sparkplug cap
AP0265246
Not Available
20
Battery YTX12-BS
AP8124748
Not Available
21
Eponge adhésive
AP8117033
$5,38 Unit Price incl. VAT
22
Battery fixing plate
AP8148660
$5,38 Unit Price incl. VAT
23
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
24
Caoutchouc pose-batterie
AP8144045
$6,30 Unit Price incl. VAT
25
Détec. temper. air
AP8124300
$38,43 Unit Price incl. VAT

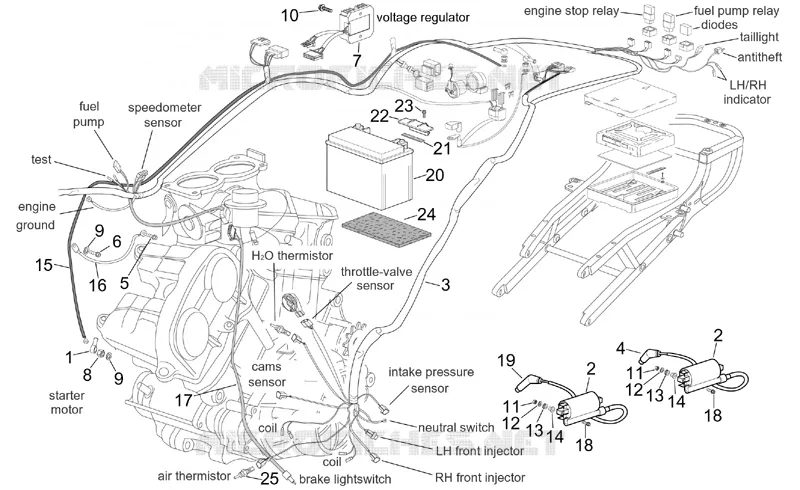

Find the detailed Central electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
