1
Engine displacement
1000
2
Model
TUONO
3
Year
2003
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Oil tank
6
Parts Diagram
Parts Catalog
Front body - Lockups
by
Clutch pump
Oil tank
1
2
3
4
4
4
5
5
6
6
7
8
9
10
11
11
12
13
14
15
16
16
17
17
18
18
18
19
19
20
20
21
21
21
22
23
23
23
24
25
26
27
28
29
30
31
1
Oil tank
AP8168060
Not Available
1
Oil tank
AP8138558
$889,91 Unit Price incl. VAT
2
Oil filler cap
AP8102618
Not Available
3
Oil cooler, black
AP8104100
Not Available
4
Caoutchouc
AP8120030
$0,85 Unit Price incl. VAT
5
"Douille en ""T"" *"
AP8221023
$0,93 Unit Price incl. VAT
6
Rondelle
AP8113004
$0,34 Unit Price incl. VAT
7
Vis tuyau huile
AP8113003
$3,65 Unit Price incl. VAT
8
Oil level pipe
AP8144275
Not Available
9
Rondelle
AP8121862
$3,65 Unit Price incl. VAT
10
Vis bride
AP8152285
$0,51 Unit Price incl. VAT
11
Joint torique
AP8120190
$3,65 Unit Price incl. VAT
12
Oil filter cpl.
AP8102828
Not Available
13
Tuyau huile
AP8144015
$29,51 Unit Price incl. VAT
14
Tuyau huile
AP8106388
$30,28 Unit Price incl. VAT
15
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
16
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
17
Collier clic
AP8120446
$0,75 Unit Price incl. VAT
18
Collier clic, blanc
AP8102349
$0,85 Unit Price incl. VAT
19
Silentbloc
AP8144061
$4,62 Unit Price incl. VAT
20
Collier clic
AP8102786
$1,10 Unit Price incl. VAT
21
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
22
"Douille en ""T"""
AP8121731
$3,65 Unit Price incl. VAT
23
Vis
AP8150137
$3,70 Unit Price incl. VAT
24
Collier
AP8102731
$3,65 Unit Price incl. VAT
25
Rondelle fer plate
AP8152181
$0,07 Unit Price incl. VAT
26
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
27
O-ring 3056
AP8120196
Not Available
28
Joint torique
AP8144008
$3,65 Unit Price incl. VAT
29
Oil pipe
AP8106387
Not Available
30
Tuyau huile;
AP8144608
$12,45 Unit Price incl. VAT
31
Oil pipe 12x19
AP8106389
Not Available

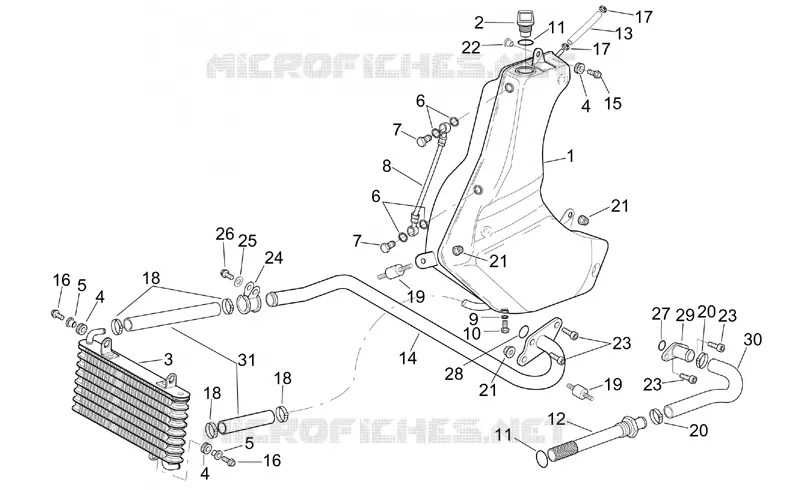

Find the detailed Oil tank APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
