Engine displacement
1000
2
Model
TUONO
3
Year
2003
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Rear electrical system
6
Parts Diagram
Parts Catalog
Frame I
by
Cylinder head and valves
Rear electrical system
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
1
Capuchon borne
AP8120218
$5,38 Unit Price incl. VAT
2
Caoutchouc
AP8220150
$1,42 Unit Price incl. VAT
3
Rondelle
AP8150159
$3,65 Unit Price incl. VAT
4
Caoutchouc p-fusibles
AP8120754
$6,30 Unit Price incl. VAT
5
Ground-battery lead
AP8124439
$41,50 Unit Price incl. VAT
6
Main wiring harness
AP8127492
Not Available
6
Main wiring harness
AP8127428
Not Available
6
Main wiring harness
AP8127465
Not Available
6
Main wiring harness
AP8127396
Not Available
7
Capuchon pôle pos.
AP8112940
$5,38 Unit Price incl. VAT
8
Inclination sensor
AP8124266
Not Available
9
Rubber sensor support
AP8144046
Not Available
10
ECU prot.box
AP8138776
$17,07 Unit Price incl. VAT
11
Couv. boîte centrale;
AP8138596
$13,53 Unit Price incl. VAT
12
Relais démarrage
AP8124636
$21,09 Unit Price incl. VAT
13
Relais 12V/30A
AP8224462
$14,17 Unit Price incl. VAT
14
Diods
AP8124289
Not Available
15
Relay-starter motor cable
AP8124269
Not Available
16
Ecrou
AP8150026
$0,16 Unit Price incl. VAT
17
Spring washer 6,4x11x0,5*
AP8150429
Not Available
18
Caoutchouc
AP8220283
$0,75 Unit Price incl. VAT
19
ECU
AP0266194
Not Available
19
ECU
AP0266196
Not Available
19
ECU
AP0266190
Not Available
20
Fuse 30a
AP8124273
Not Available
21
Caoutchouc p-fusibles
AP8112811
$6,40 Unit Price incl. VAT
22
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
23
Embout appui batterie lat.
AP8144288
$10,00 Unit Price incl. VAT

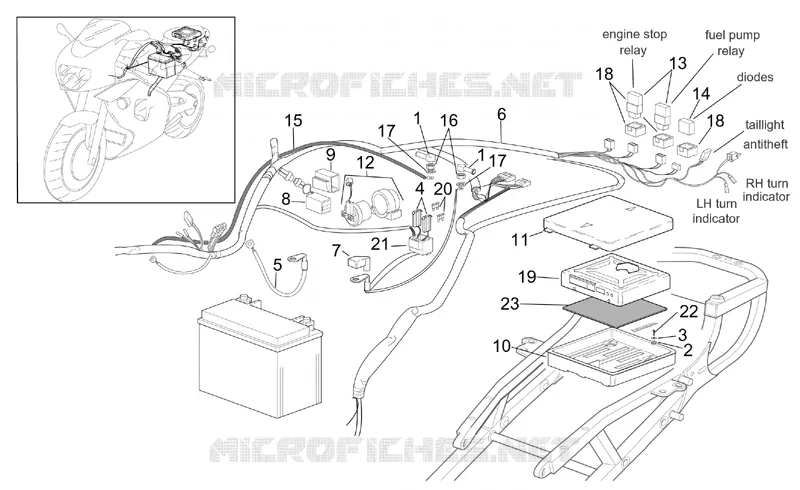

Find the detailed Rear electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
