1
Engine displacement
125
2
Model
ETX
3
Year
1998
4
Trim
ETX
5
Parts Catalog
Grip shift
6

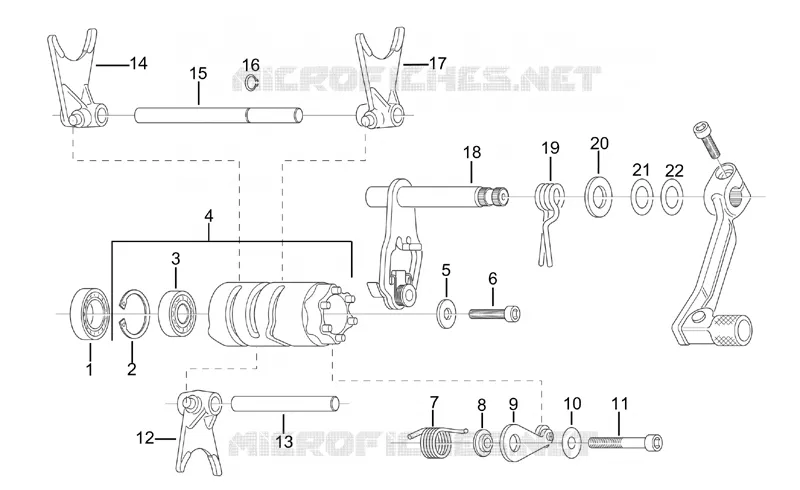

Parts Diagram
Parts Catalog
Transmission 6 speed
by
Clutch
Grip shift
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Ball bearing 61804
AP0632060
Not Available
2
Circlip
AP0245790
$3,65 Unit Price incl. VAT
3
Bearing 6001
AP0232402
$27,00 Unit Price incl. VAT
4
Shift cam
AP0258305
Not Available
5
Washer 6,2x18x2
AP0827305
$6,60 Unit Price incl. VAT
6
Hex socket screw M6x30
AP0840880
$3,65 Unit Price incl. VAT
7
Index spring
AP0239241
Not Available
8
Bush
AP0227710
Not Available
9
Index assy. lever
AP0248325
Not Available
10
Washer 6,2x18x0,5
AP0827307
$5,20 Unit Price incl. VAT
11
Hex socket screw M6x45
AP0241821
Not Available
12
Fork 5-6 V.ta'
AP0258135
Not Available
13
Pin M6x70
AP0229390
$6,38 Unit Price incl. VAT
14
Fork 2-3 speed
AP0258123
Not Available
15
Fork shaft
AP0258200
$57,98 Unit Price incl. VAT
16
Circlip 8x0,8
AP0245570
$3,65 Unit Price incl. VAT
17
Fork 1-4 v.ta'
AP0258113
Not Available
18
Gearshift shaft+pawl assy
AP0220295
Not Available
19
Spring
AP0239252
Not Available
20
Washer 13
AP0427690
$3,65 Unit Price incl. VAT
21
Thrust washer 12,5/21,5
AP0827261
Not Available
22
Thrust washer 12,5/21,5/0,5
AP0227450
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
