1
Engine displacement
125
2
Model
ETX
3
Year
1998
4
Trim
ETX
5
Parts Catalog

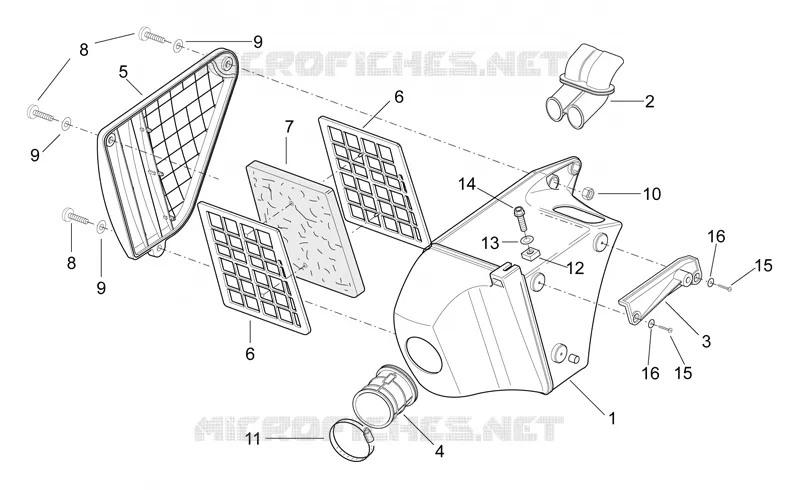

Air box
6
Parts Diagram
Parts Catalog
Water cooler
by
Exhaust unit
Air box
16
16
15
15
14
13
12
11
10
9
9
9
8
8
7
6
6
5
4
3
2
1
1
Filter housing base
AP8131888
Not Available
2
Intake hose
AP8120748
$8,91 Unit Price incl. VAT
3
Battery plate
AP8131680
$1,81 Unit Price incl. VAT
4
Carburettor-air box hose
AP8120654
Not Available
5
Filter housing cover
AP8131898
Not Available
6
Filter support guard-couple
AP8130596
Not Available
7
Air filter
AP8101851
Not Available
8
Screw
AP8150060
Not Available
9
Washer 6,6x18*
AP8150179
$0,08 Unit Price incl. VAT
10
Nut M6
AP8150026
$0,16 Unit Price incl. VAT
11
Hose clamp D=60-80
AP8120246
$3,65 Unit Price incl. VAT
12
Yel.zinc square nut M6x12x12
AP8150386
Not Available
13
Curved spring washer *
AP8150182
$0,08 Unit Price incl. VAT
14
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
15
Screw 3x15*
AP8152114
Not Available
16
Washer 3,2x7x0,5*
AP8150233
$0,05 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
