1
Engine displacement
125
2
Model
ETX
3
Year
1998
4
Trim
ETX
5
Parts Catalog

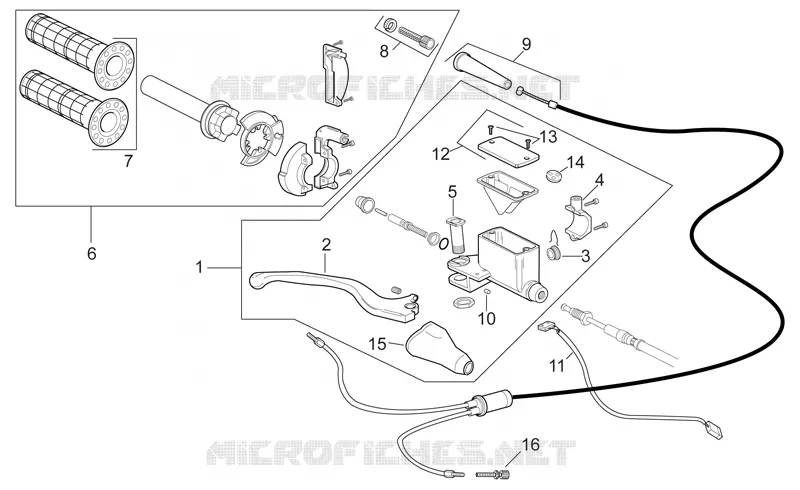

RH controls
6
Parts Diagram
Parts Catalog
Dashboard
by
LH Controls
RH controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Front master cilinder d12
AP8113702
Not Available
2
Front brake lever
AP8118416
Not Available
3
Master cyl.level window
AP8213243
Not Available
4
Brake lever U-bolt
AP8113203
$21,37 Unit Price incl. VAT
5
Brake lever pin
AP8113058
Not Available
6
Throttle+hand grips, black
AP8118427
Not Available
7
Handgrip pair, black
AP8118462
Not Available
8
Throttle cable adjuster
AP8114371
$2,33 Unit Price incl. VAT
9
Throttle cable
AP8114361
Not Available
10
Front brake lever stop
AP8113522
Not Available
11
Front brake switch+harness
AP8112998
Not Available
12
Pump cover
AP8113672
$11,72 Unit Price incl. VAT
13
screw
AP8113537
Not Available
14
Antiemulsion device
AP8113349
Not Available
15
Lever cover
AP8113735
Not Available
16
Throttle cable adjuster
AP8114272
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
