1
Engine displacement
125
2
Model
ETX
3
Year
1998
4
Trim
ETX
5
Parts Catalog

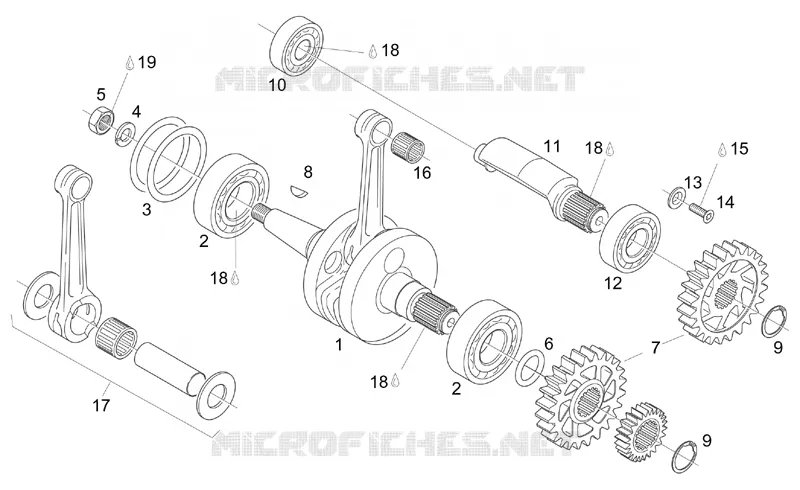

Crankshaft - Balance shaft
6
Parts Diagram
Parts Catalog
Water pump assy
by
Cylinder - Head - Piston
Crankshaft - Balance shaft
1
2
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
18
18
18
19
1
Crankshaft cpl. 54,5 mm
AP0295373
Not Available
2
Bearing 6206
AP0932588
Not Available
3
Spacer D50x62x0,3
AP0427591
Not Available
3
Spacer D50x62x0,1
AP0427590
Not Available
4
Break washer A12
AP0945754
Not Available
5
Nut M12x1
AP0242515
$8,01 Unit Price incl. VAT
6
O-ring 18x3,5
AP0430460
$3,65 Unit Price incl. VAT
7
Balance shaft gear Z=27
AP0234431
$75,98 Unit Price incl. VAT
8
Transmission key 4x5
AP0246570
Not Available
9
Circlip AV 20
AP0245650
Not Available
10
Bearing 6302
AP0232291
Not Available
11
Balance shaft
AP0237945
Not Available
12
Ball bearing 6005
AP0232340
Not Available
13
Thrust washer
AP0227280
$7,23 Unit Price incl. VAT
14
screw
AP0940315
Not Available
15
Loctite (violet) 221 10cc.
AP0899785
Not Available
16
Roller cage 15x19x20
AP0932028
$48,60 Unit Price incl. VAT
17
Connecting rod cpl.
AP0295374
Not Available
18
Loctite Anti Seize 10 GR.
AP0297431
Not Available
19
Loctite (green) 648 5gr.
AP0899788
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
