1
Engine displacement
125
2
Model
ETX
3
Year
1998
4
Trim
ETX
5
Parts Catalog
Transmission 6 speed
6

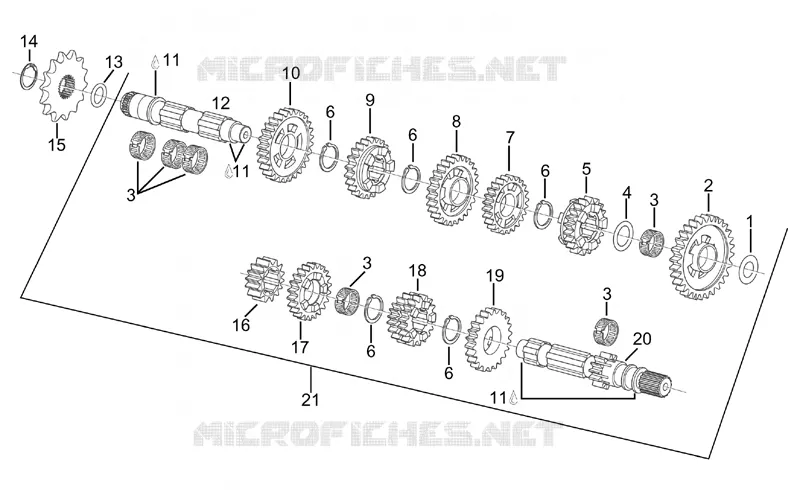

Parts Diagram
Parts Catalog
Cylinder - Exhaust valve
by
Grip shift
Transmission 6 speed
1
2
3
3
3
3
4
5
6
6
6
6
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
1
Thrust washer 17,2/30/1
AP0227430
$4,82 Unit Price incl. VAT
2
Gear Z=30
AP0634065
Not Available
3
Roller cage 21x25x10
AP0232742
Not Available
4
Thrust washer 21,2/30/1
AP0244100
$4,82 Unit Price incl. VAT
5
Gear Z=21
AP0634130
$147,01 Unit Price incl. VAT
6
Circlip 25x2
AP0245730
Not Available
7
Gear Z=25
AP0234858
Not Available
8
Gear Z=27
AP0234984
$246,23 Unit Price incl. VAT
9
Gear Z=23
AP0634110
$147,39 Unit Price incl. VAT
10
Gear Z=29
AP0234968
Not Available
11
Loctite Anti Seize 10 GR.
AP0297431
Not Available
12
Driven shaft
AP0220280
Not Available
13
O-ring 18x3,5
AP0430460
$3,65 Unit Price incl. VAT
14
Circlip AV 20
AP0245650
Not Available
15
Pinion
AP0236062
$63,50 Unit Price incl. VAT
15
Pinion Z=14
AP0236061
Not Available
15
Pinion Z=16
AP0236063
Not Available
15
Pinion Z=16
AP0236425
Not Available
16
2nd pinion gear Z=14
AP0634085
$120,49 Unit Price incl. VAT
17
Gear Z=21
AP0634100
$96,31 Unit Price incl. VAT
18
Gear Z=17/19
AP0634095
Not Available
19
Gear Z=22
AP0634120
Not Available
20
Primary gear shaft Z=10
AP0220300
Not Available
21
Gear box assy 6 v.ta'
AP0281211
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
