1
Engine displacement
450
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog

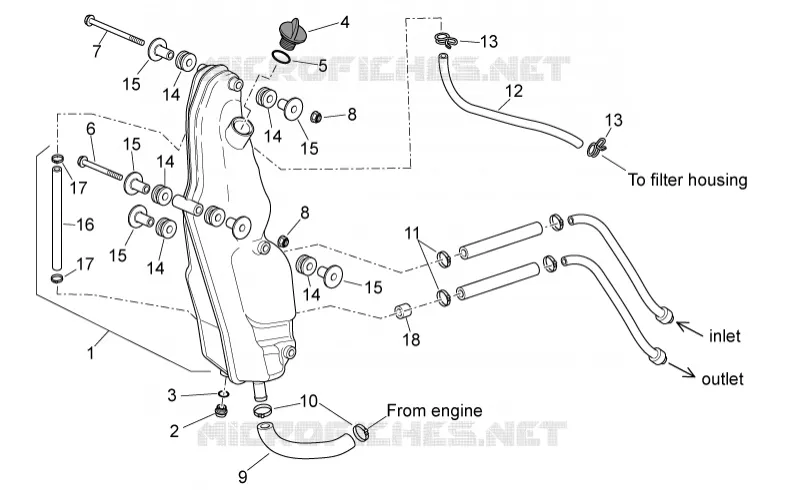

Oil tank
6
Parts Diagram
Parts Catalog
Rear wheel II
by
Rear brake system
Oil tank
1
2
3
4
5
6
7
8
8
9
10
11
12
13
13
14
14
14
14
14
15
15
15
15
15
16
17
17
18
1
Oil tank
AP9100343
Not Available
2
Oil unload plug
AP9150174
$3,65 Unit Price incl. VAT
3
Seal washer D12x18x1,5
AP9150349
Not Available
4
Oil plug M20x1,5
AP9150410
$5,38 Unit Price incl. VAT
5
Gasket ring
AP8121638
Not Available
6
Screw w/ flange M6x70
AP9100638
$3,65 Unit Price incl. VAT
7
Screw w/ flange M6x1 L=95
AP9100661
$5,20 Unit Price incl. VAT
8
Self-locking nut M6x1
AP9100434
$29,76 Unit Price incl. VAT
9
pipe Blow-By
AP9100496
$5,38 Unit Price incl. VAT
10
Hose clip D16,5X6,6
AP8102903
$8,01 Unit Price incl. VAT
11
Hose clip D.15,5x6,6
AP8101586
$5,73 Unit Price incl. VAT
12
pipe 9x14
AP8120987
$10,76 Unit Price incl. VAT
13
Hose cock
AP8102525
$10,95 Unit Price incl. VAT
14
Rubber spacer *
AP8120223
$0,95 Unit Price incl. VAT
15
Bush D14-D9-d6.5-H12
AP9100950
Not Available
16
Oil level pipe
AP9100665
Not Available
17
Hose clip
AP9100951
$5,20 Unit Price incl. VAT
18
Rubber pipe 12,8x8,8 L=28
AP9100267
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
