1
Engine displacement
450
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog
Crankcase II
6
Parts Diagram
Parts Catalog
by
Rear shock absorber

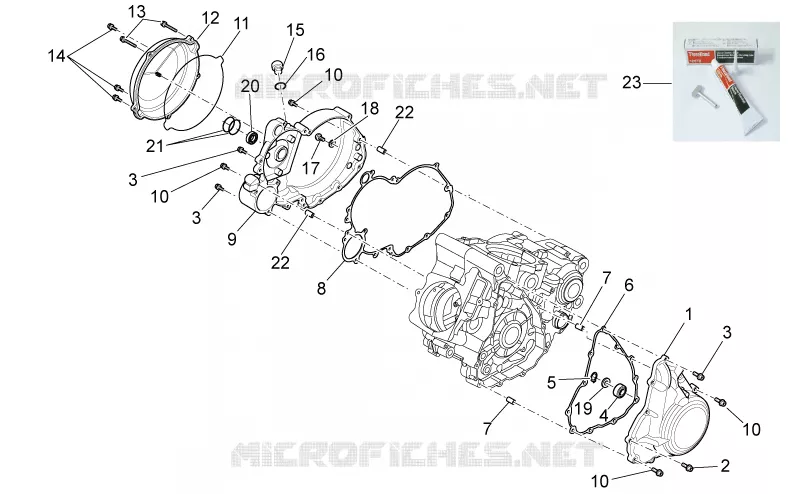

Crankcase II
1
2
3
3
3
4
5
6
7
7
8
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
1
Ignition cover
AP9150152
Not Available
1
Ignition cover
855242
Not Available
2
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
3
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
4
Oil seal D12x22x5,5
851315
Not Available
5
Circlip D25
AP9150524
$10,95 Unit Price incl. VAT
6
Gasket
AP9150153
$9,50 Unit Price incl. VAT
7
Bush D6,2x8X15
AP9150118
$6,60 Unit Price incl. VAT
8
Gasket
AP9150148
$12,69 Unit Price incl. VAT
9
Clutch side cover
851019
Not Available
9
Clutch side cover
AP9150147
Not Available
10
Screw w/ flange M6x35
AP8152282
$0,51 Unit Price incl. VAT
11
O-ring D171,13x2,62
AP9150150
Not Available
12
Complete clutch cover
AP9150094
$21,37 Unit Price incl. VAT
13
Screw w/ flange M6x60
AP9150395
$3,65 Unit Price incl. VAT
14
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
15
Oil plug M20x1,5
AP9150410
$5,38 Unit Price incl. VAT
16
O-ring D18,72x2,62
AP9150356
$5,38 Unit Price incl. VAT
17
Hex socket screw M6x10
AP9150473
$3,65 Unit Price incl. VAT
18
Seal washer D6x12x1
AP9150351
$3,65 Unit Price incl. VAT
19
Oil seal cup
AP9150522
Not Available
20
Ball bearing 10x19x5
851015
Not Available
21
O-ring 20x1
851012
Not Available
22
Bush D6,2x8X15
AP9150118
$6,60 Unit Price incl. VAT
22
Bush D6,2x7,8X15
851017
$6,60 Unit Price incl. VAT
23
Sealing compound
855252
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
