1
Engine displacement
450
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog

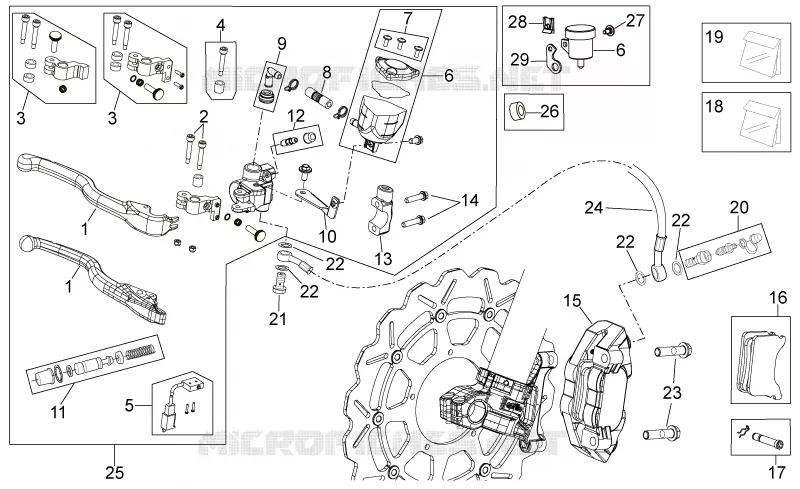

Front brake system II
6
Parts Diagram
Parts Catalog
Swing arm
by
Drive shaft
Front brake system II
1
1
2
3
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
22
23
24
25
1
Lever
851366
$489,22 Unit Price incl. VAT
1
Lever
AP9100922
$120,04 Unit Price incl. VAT
2
screw
AP9100921
Not Available
3
Lever overhaul kit
AP9100920
Not Available
3
Lever overhaul kit
851367
$164,46 Unit Price incl. VAT
4
Pressing kit
AP9100919
$59,95 Unit Price incl. VAT
5
Stop switch
AP9100918
$94,23 Unit Price incl. VAT
6
Oil tank
AP9100917
$75,62 Unit Price incl. VAT
7
screw
AP9100916
Not Available
8
Brake fluid line
AP9100915
$19,68 Unit Price incl. VAT
9
Joint
AP9100914
$27,67 Unit Price incl. VAT
10
Plate
851368
$35,51 Unit Price incl. VAT
10
Plate
AP9100913
Not Available
11
Pump revision kit
AP9100912
Not Available
12
Bleeder kit
AP9100911
$21,52 Unit Price incl. VAT
13
U-bolt
AP9100910
$34,73 Unit Price incl. VAT
14
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
15
Front brake caliper
AP9100713
Not Available
16
Pads pair
AP9100906
Not Available
17
Pin with cotter
AP9100907
$35,51 Unit Price incl. VAT
18
Brake caliper rev. kit
AP9100908
Not Available
19
Brake pistons, pair
AP9100909
Not Available
20
Bleeder revision kit
AP9100905
$38,43 Unit Price incl. VAT
21
Oil pipe screw
AP9100763
$12,36 Unit Price incl. VAT
22
Gasket
AP8121915
Not Available
23
Screw w/ flange M10x1,25x40
AP9100749
$3,65 Unit Price incl. VAT
24
Front brake hose
AP9100712
Not Available
25
Front master cilinder FTE
851348
$593,88 Unit Price incl. VAT
25
Front master cilinder FTE
AP9100711
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
