1
Engine displacement
450
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog

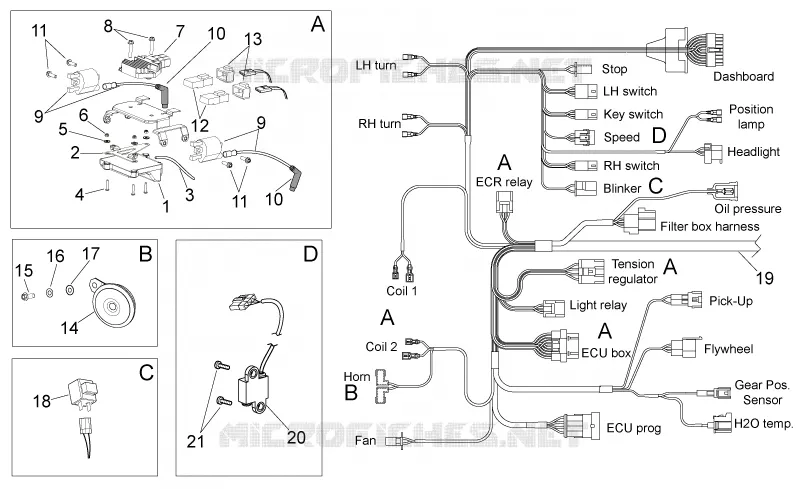

Electrical system I
6
Parts Diagram
Parts Catalog
Air box
by
Valves
Electrical system I
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
1
Electronic control unit
AP9100447
Not Available
2
Control unit support plate
851023
$8,91 Unit Price incl. VAT
3
Breather pipe
AP8220598
$5,38 Unit Price incl. VAT
4
Hex socket screw M4x20
AP9100945
Not Available
5
Washer 4,3x12x1
AP8150011
$0,25 Unit Price incl. VAT
6
Nut M4
AP8150204
$0,51 Unit Price incl. VAT
7
Voltage regulator
AP9100424
Not Available
8
Screw w/ flange M6x30
AP8152281
$1,70 Unit Price incl. VAT
9
Coil
AP9100429
$138,48 Unit Price incl. VAT
10
Sparkplug cap
AP9100423
$20,25 Unit Price incl. VAT
11
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
12
Relay 12V-30A
AP8224462
$14,17 Unit Price incl. VAT
13
Rubber spacer *
AP8220283
$0,75 Unit Price incl. VAT
14
Horn
AP8127391
Not Available
15
Hex socket screw
AP8152112
$3,65 Unit Price incl. VAT
16
Washer 8,5x15x0,8
AP8150376
$0,08 Unit Price incl. VAT
17
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
18
Flasher unit
AP8124235
$14,18 Unit Price incl. VAT
19
Main wiring harness
AP9100568
$342,75 Unit Price incl. VAT
20
Speed sensor
AP9100518
Not Available
20
Speed sensor
AP9100965
$113,74 Unit Price incl. VAT
21
Self-tapping screw M4x12
AP8150460
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
