1
Engine displacement
450
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog
Front wheel I
6
Parts Diagram
Parts Catalog
Completing part
by
Saddle

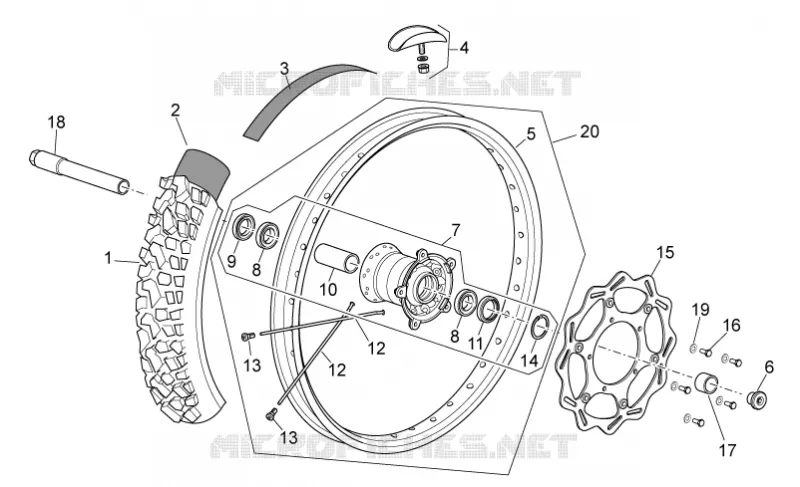

Front wheel I
1
2
3
4
5
6
7
8
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
1
Front tyre 90/90X21"
AP9100507
Not Available
2
Inner tube 21"
AP9100458
Not Available
3
Front wheel flap 21"
AP8109001
$15,98 Unit Price incl. VAT
4
Bracket
AP9100457
Not Available
5
Front wheel 1,6x21"
AP9100262
Not Available
6
Cover M22
AP9100171
$10,76 Unit Price incl. VAT
7
Front hub
AP9100225
$307,25 Unit Price incl. VAT
8
Ball bearing 25x42x9
AP9100216
Not Available
9
Gasket ring 28x42x7
AP9100228
Not Available
10
Internal spacer L=69,7
AP9100226
$10,95 Unit Price incl. VAT
11
Gasket ring 32x42x7
AP9100227
Not Available
12
Spoke d.3,5-21"-l.233
AP9100224
$5,38 Unit Price incl. VAT
13
Nipple
AP9100057
$5,38 Unit Price incl. VAT
14
Circlip D.42
AP8121334
$3,65 Unit Price incl. VAT
15
Front brake disc d.270
AP9100461
Not Available
16
Hex screw M6x16
AP8150070
$3,65 Unit Price incl. VAT
17
Outside spacer L=26,3
AP9100229
$15,31 Unit Price incl. VAT
18
Front wheel spindle L=221,5
AP9100230
$136,80 Unit Price incl. VAT
19
Spring washer 6,4x11x0,5*
AP8150429
Not Available
20
Front wheel 21"
851063
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
