1
Engine displacement
450
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog
Drive shaft
6
Parts Diagram
Parts Catalog
Front brake system II
by
Ignition unit

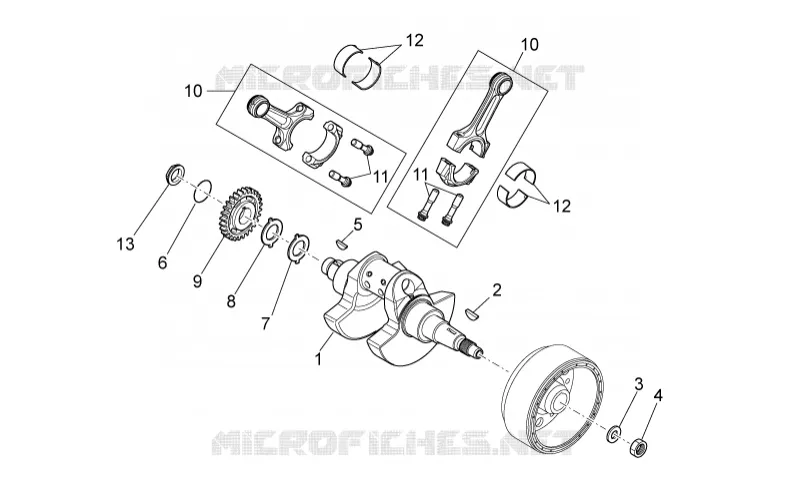

Drive shaft
1
2
3
4
5
6
7
8
9
10
10
11
11
12
12
13
1
Drive shaft
AP9150019
Not Available
1
Drive shaft
AP9150527
Not Available
2
Flywheel key D3x4,8
851007
Not Available
3
Washer D15x28x2,5
AP9150437
Not Available
4
Nut M14x1
AP9150436
$8,01 Unit Price incl. VAT
5
Transmission key 4x6,5
AP9150402
$3,65 Unit Price incl. VAT
6
O-ring D16x3,5
AP9150525
Not Available
7
Fifth wheel 44x53x2
AP9150065
$13,53 Unit Price incl. VAT
8
Fifth wheel 36x50x1,4
AP9150066
$13,53 Unit Price incl. VAT
9
Pinion
AP9150210
$132,34 Unit Price incl. VAT
10
Connecting rod cpl.
AP9150018
Not Available
10
Connecting rod cpl.
AP9150315
Not Available
11
Connecting rod screw
AP9150127
Not Available
12
Bushing,yellow 35x38x16,5
AP9150455
$31,21 Unit Price incl. VAT
12
Bushing, green 35x38x16,5
AP9150323
$31,21 Unit Price incl. VAT
12
Bushing,blue 35x38x16,5
AP9150454
Not Available
13
Flanged nut M18x1,25
AP9150236
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
