Engine displacement
500
2
Model
ATLANTIC
3
Year
2001
4
Trim
Atlantic
5
Parts Catalog
Oil pump
6

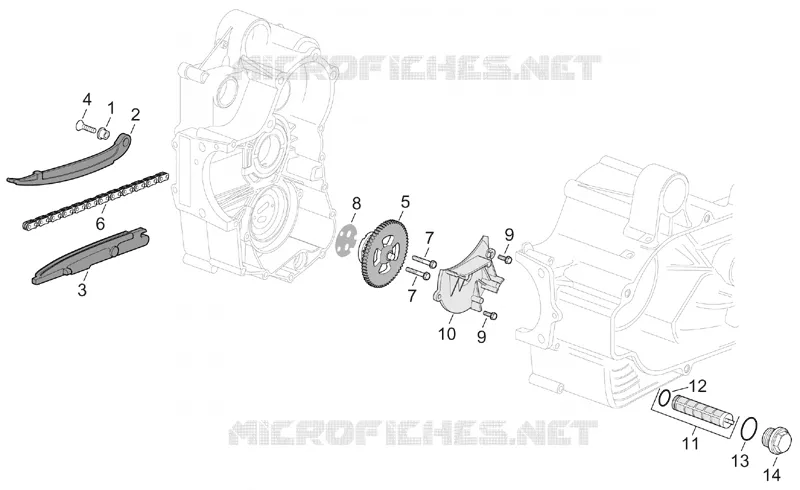

Parts Diagram
Parts Catalog
Pulley assy., driven
by
Transmission
Oil pump
1
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
1
Spacer
AP8560045
Not Available
2
Chain tensioner rod
AP8560074
Not Available
3
Chain tensioner sliding block
AP8560071
Not Available
4
Screw
AP8560157
Not Available
5
Oil pump assy.
AP8560032
Not Available
6
Camshaft chain
AP8560060
Not Available
7
Screw w/ flange
AP8551029
Not Available
8
Gasket
AP8560087
Not Available
9
Screw w/ flange
AP8560153
Not Available
10
Oil bulhead
AP8560155
Not Available
11
Oil filter
AP8560052
Not Available
12
O-ring
AP8550337
Not Available
13
O-ring
AP8550336
Not Available
14
Oil filter plug
AP8560055
Not Available

Find the detailed Oil pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
