Engine displacement
500
2
Model
ATLANTIC
3
Year
2001
4
Trim
Atlantic
5
Parts Catalog
Top box
6
Parts Diagram
Parts Catalog
Plate set-decal-op.handbooks
by
Engine assembly
Top box
1
2
3
4
1
Top box lug.rack sup. Str-Cas
AP8792242
Not Available
2
Cover
AP8702123
Not Available
3
Top box, red Str-Cas 45L
AP8792245
Not Available
3
Top box, red Str-Cas 45L
AP8700998
Not Available
3
Top box, a.blue Str-Cas 45L
AP8792244
Not Available
3
Top box, cyan Str-Cas 45L
AP8792246
Not Available
3
Top box, grey Str-Cas 45L
AP8790240
Not Available
3
Top box, p.grey Str-Cas 45L
AP8792243
Not Available
3
Top box, grey Str-Cas 45L
AP8792362
Not Available
4
Seat cushion, grey
AP8702128
Not Available
4
Seat cushion, grey
AP8702127
Not Available
4
Seat cushion, black
AP8792364
Not Available
4
Seat cushion, black
AP8702130
Not Available

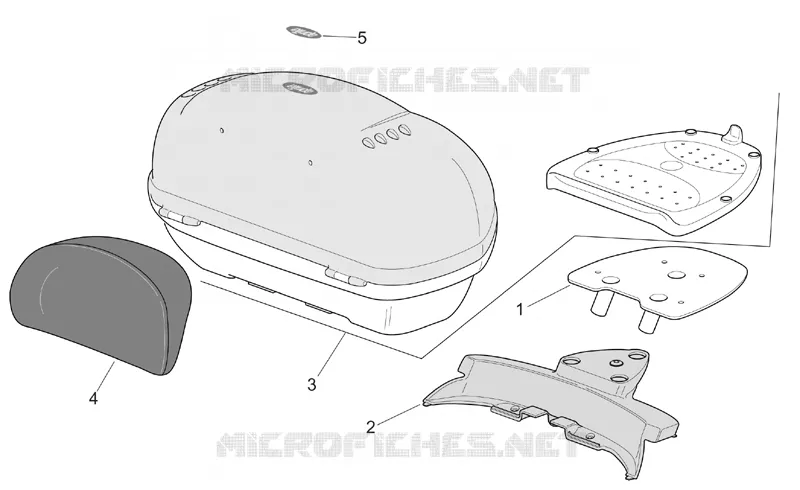

Find the detailed Top box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
