1
Engine displacement
500
2
Model
ATLANTIC
3
Year
2001
4
Trim
Atlantic
5
Parts Catalog
Expansion tank
6
Parts Diagram
Parts Catalog
Water cooler
by
Fuel tank
Expansion tank
1
2
3
4
5
6
7
8
9
10
1
Vase d'expansion;
AP8258243
$17,83 Unit Price incl. VAT
2
Rad cap w/ vent
AP8201463
Not Available
3
Breather pipe
AP8144056
Not Available
4
Tuyau radiateur-thermostat
AP8144374
$61,33 Unit Price incl. VAT
5
Fuel pipe 5,5x10
AP8220325
Not Available
6
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
7
Douille
AP8121032
$0,59 Unit Price incl. VAT
8
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
9
Collier
AP8101573
$3,65 Unit Price incl. VAT
10
Collier serr. Tube;
AP8104097
$5,38 Unit Price incl. VAT

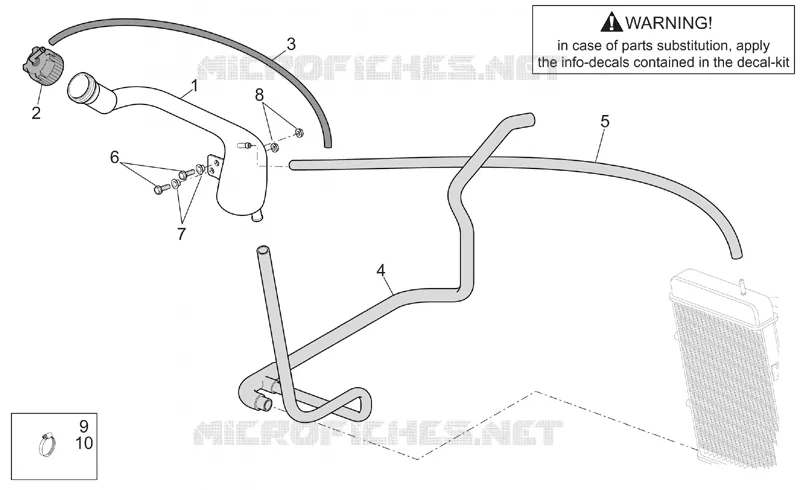

Find the detailed Expansion tank APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
