1
Engine displacement
500
2
Model
ATLANTIC
3
Year
2001
4
Trim
Atlantic
5
Parts Catalog
Front brake caliper
6
Parts Diagram
Parts Catalog
Front wheel
by
Rear wheel
Front brake caliper
1
2
3
4
5
5
6
6
7
7
7
8
8
8
9
10
11
12
13
13
14
15
1
LH front brake caliper
AP8113916
Not Available
2
RH front brake caliper
AP8133521
Not Available
3
Brake caliper rev. kit
AP8133538
Not Available
4
Pads pair
AP8113865
Not Available
5
Purge air
AP8213108
$9,22 Unit Price incl. VAT
6
Capuchon reniflard
AP8113005
$5,38 Unit Price incl. VAT
7
Rondelle
AP8113004
$0,34 Unit Price incl. VAT
8
Vis tuyau huile
AP8113003
$3,65 Unit Price incl. VAT
9
Tube frein AV;
AP8113944
$75,62 Unit Price incl. VAT
10
Brake caliper rev. kit
AP8133538
Not Available
11
Pads pair
AP8133540
Not Available
12
Brake hose
AP8113946
Not Available
13
Vis
AP8150107
$3,65 Unit Price incl. VAT
14
Vis bride
AP8152282
$0,51 Unit Price incl. VAT
15
Valve
AP8113922
Not Available

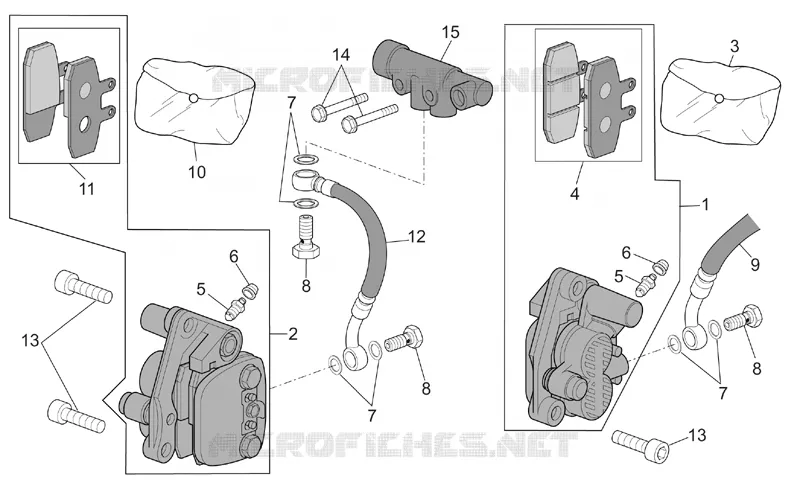

Find the detailed Front brake caliper APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
