Engine displacement
500
2
Model
ATLANTIC
3
Year
2001
4
Trim
Atlantic
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Expansion tank
by
Air box
Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Fuel tank
AP8149471
Not Available
2
Bouchon essence
AP8144782
$5,38 Unit Price incl. VAT
3
Joint réservoir essence
AP8144421
$5,38 Unit Price incl. VAT
4
Support pompe essence;
AP8134712
$9,22 Unit Price incl. VAT
5
Fuel pump flange
AP8134706
Not Available
6
Joint
AP8144422
$5,38 Unit Price incl. VAT
7
Guard
AP8149476
Not Available
8
Fuel pump cpl.
AP8176189
Not Available
9
Lock
AP8158837
Not Available
10
Insulator
AP8117218
Not Available
11
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
12
Delivery fuel pipe
AP8144427
Not Available
13
Fuel return hose
AP8144426
Not Available
14
Protection
AP8158779
Not Available
15
Heat protection
AP8217031
Not Available

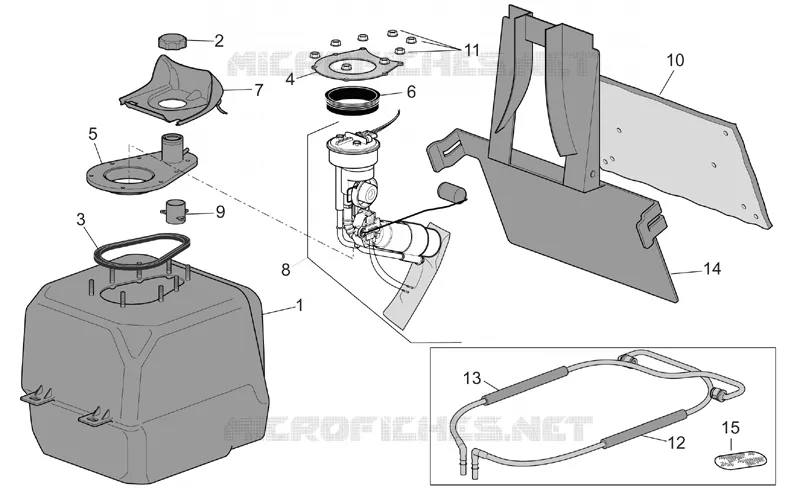

Find the detailed Fuel tank APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
