1
Engine displacement
500
2
Model
ATLANTIC
3
Year
2001
4
Trim
Atlantic
5
Parts Catalog
Central stand
6
Parts Diagram
Parts Catalog
Foot rests
by
Front fork - Stem base
Central stand
1
2
3
4
4
5
6
7
8
9
10
11
12
13
1
Central stand
AP8146625
Not Available
1
Béquille centrale;
AP8146418
$319,55 Unit Price incl. VAT
2
Lateral stand
AP8146419
Not Available
3
Vis fix. béquille;
AP8121932
$8,01 Unit Price incl. VAT
4
Ecrou autobloqu.
AP8152301
$0,59 Unit Price incl. VAT
5
Vis fix. béquille;
AP8121994
$6,60 Unit Price incl. VAT
6
Ecrou bas
AP8152001
$0,51 Unit Price incl. VAT
7
Rotary switch
AP8124977
Not Available
8
Ress.retour béq.int.
AP8221211
$4,86 Unit Price incl. VAT
9
Ressort rappel béq.
AP8221204
$5,45 Unit Price incl. VAT
10
Ressort rappel béq.
AP8221317
$17,07 Unit Price incl. VAT
11
Ress.retour béq.int.
AP8221318
$13,53 Unit Price incl. VAT
12
screw
AP8121596
Not Available
13
Ressort;
AP8121595
$5,38 Unit Price incl. VAT

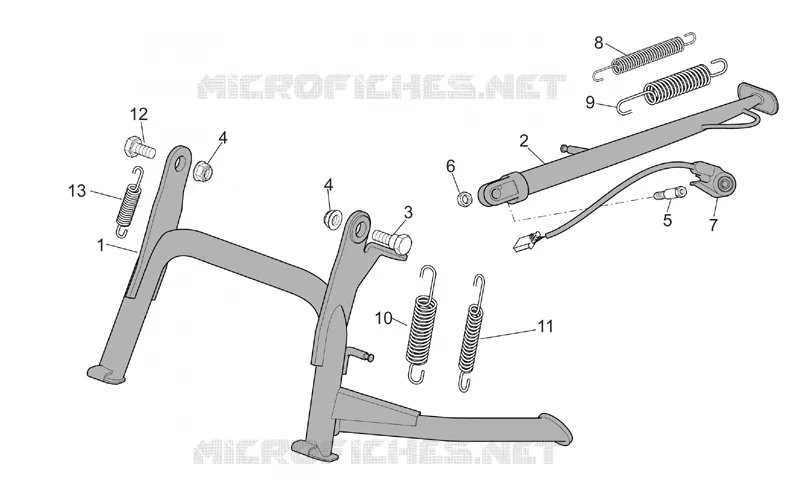

Find the detailed Central stand APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
