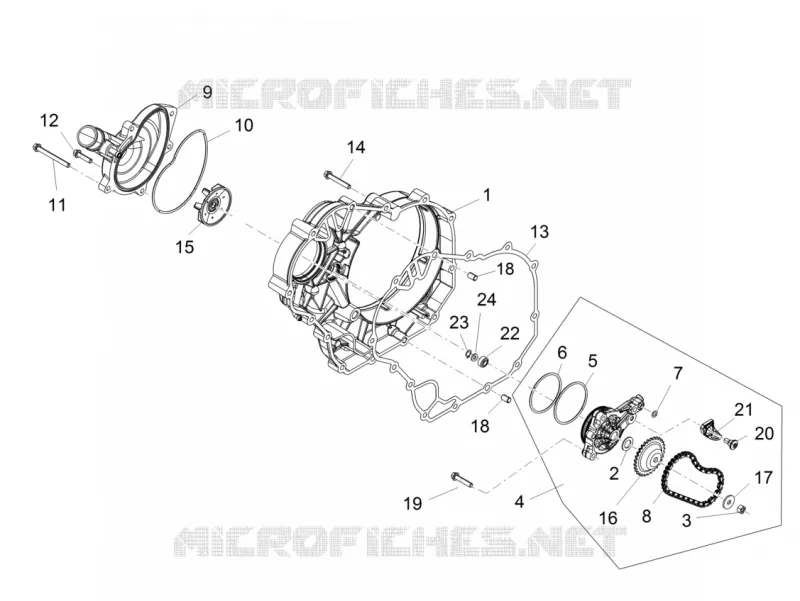

Water pump
24
23
22
21
20
19
16
14
15
13
11
12
5
6
4
2
3
1
18
18
17
10
9
8
7
1
Clutch side cover
B013000
Not Available
2
Shim washer
878734
$0,44 Unit Price incl. VAT
3
Nut M6
876529
$0,81 Unit Price incl. VAT
4
Water pump assy
B0142585
$465,25 Unit Price incl. VAT
5
O-ring
878115
$1,63 Unit Price incl. VAT
6
O-ring
876538
$1,01 Unit Price incl. VAT
7
O-ring
224035
$2,41 Unit Price incl. VAT
8
Chain 52
846624
$8,48 Unit Price incl. VAT
9
Water pump cover grigio zenith
B013068
Not Available
10
Water pump body seal
B013527
$6,38 Unit Price incl. VAT
11
Screw w/ flange
877850
$0,19 Unit Price incl. VAT
12
Screw w/ flange
874549
$0,34 Unit Price incl. VAT
13
Water pump cover gasket
877069
$16,09 Unit Price incl. VAT
14
Screw w/ flange
874551
$0,21 Unit Price incl. VAT
15
Rotor
880646
$6,74 Unit Price incl. VAT
16
Chain ring
875814
$3,28 Unit Price incl. VAT
17
Conical washer
834951
$0,15 Unit Price incl. VAT
18
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
19
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
20
Screw w/ flange M6x12
857082
$0,24 Unit Price incl. VAT
21
water pump slider
880798
$1,75 Unit Price incl. VAT
22
Oil seal D12x22x6
855031
$9,11 Unit Price incl. VAT
23
Circlip
880701
$3,70 Unit Price incl. VAT
24
Spacer
879320
$3,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
