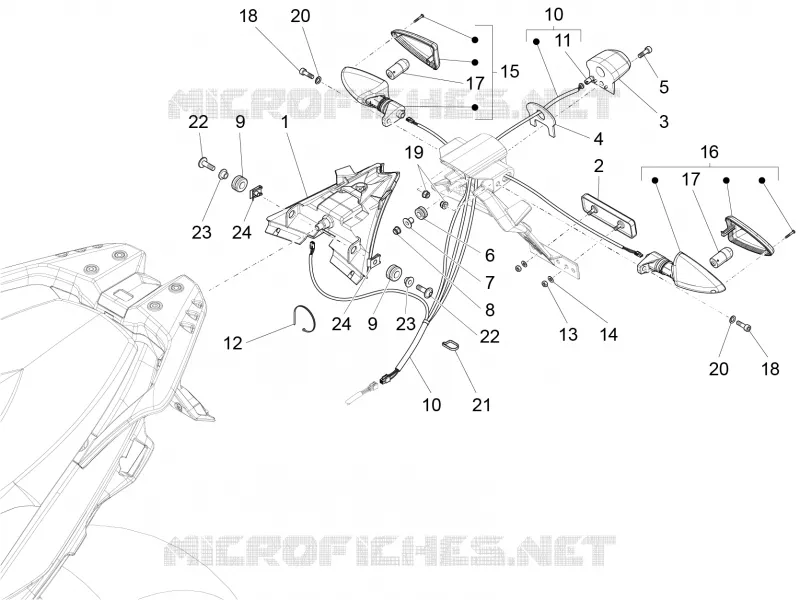

Rear lights
24
19
17
5
3
4
1
2
24
23
23
22
21
20
20
18
18
17
16
15
14
13
12
11
10
10
9
9
8
7
6
1
Taillight
2B001590
$118,08 Unit Price incl. VAT
2
Rear reflector
AP8112916
$6,35 Unit Price incl. VAT
3
Number-plate light
85256R
$5,53 Unit Price incl. VAT
4
Vibration-damping rubber
AP8117258
$5,38 Unit Price incl. VAT
5
Screw 4,2x16
AP8150522
$3,65 Unit Price incl. VAT
6
Rubber spacer
AP8112600
$4,49 Unit Price incl. VAT
7
T bush
894566
$2,02 Unit Price incl. VAT
8
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
9
Rubber spacer
AP8112600
$4,49 Unit Price incl. VAT
10
Taillight wiring harn.
B044716
$23,06 Unit Price incl. VAT
11
Lamp 12V-5W
292022
Not Available
12
Hose clamp
AP8120657
$0,34 Unit Price incl. VAT
13
Nut M4
AP8150204
$0,51 Unit Price incl. VAT
14
Washer 4,3X9X0,8
AP8150158
$3,65 Unit Price incl. VAT
15
LH front/RH rear turn indic.
AP8127803
$37,80 Unit Price incl. VAT
16
RH front/LH rear turn indic.
AP8127804
$17,87 Unit Price incl. VAT
17
Lamp RY10W 12V
AP8127489
$6,35 Unit Price incl. VAT
18
Hex socket screw M5x16
AP8150050
$3,65 Unit Price incl. VAT
19
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
20
Washer 5,3X10X1
AP8150177
$0,15 Unit Price incl. VAT
21
Hose clamp 155x2
AP8102386
$0,07 Unit Price incl. VAT
22
Screw w/ flange
AP8152338
$3,65 Unit Price incl. VAT
23
T bush
AP8121795
$3,38 Unit Price incl. VAT
24
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
