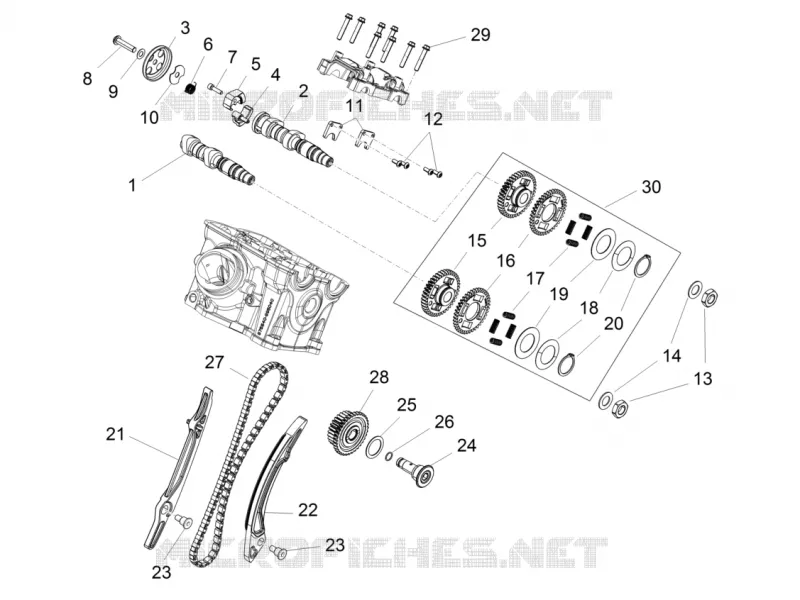

Rear cylinder timing system
28
25
20
18
19
27
26
24
23
23
22
21
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
30
29
1
Intake camshaft
B017909
Not Available
2
Exhaust camshaft
B017912
Not Available
3
Decompression bell
876087
$1,54 Unit Price incl. VAT
4
Decompression counterweight
875373
$32,58 Unit Price incl. VAT
5
Decompressor counterweight
B015556
$112,82 Unit Price incl. VAT
6
Decompression spring
880064
$0,62 Unit Price incl. VAT
7
Hex socket screw
877885
$0,62 Unit Price incl. VAT
8
Torx convex big end screw
877884
$0,86 Unit Price incl. VAT
9
Shim washer
287073
$0,17 Unit Price incl. VAT
10
Special washer
879523
$1,22 Unit Price incl. VAT
11
Axial retaining element
877829
$4,85 Unit Price incl. VAT
12
Torx Screw M5x12
B014598
$0,25 Unit Price incl. VAT
13
Nut M15x1 SX
874752
$6,39 Unit Price incl. VAT
14
Thrust washer
874744
$0,38 Unit Price incl. VAT
15
Camshaft gear
875878
$25,98 Unit Price incl. VAT
16
Camshaft dual gear
B015604
$30,62 Unit Price incl. VAT
17
Spring
B018916
Not Available
18
Belleville spring
849718
$0,44 Unit Price incl. VAT
19
Washer
849720
$0,53 Unit Price incl. VAT
20
Snap ring
006429
$3,65 Unit Price incl. VAT
21
Chain guide plate
871798
$5,68 Unit Price incl. VAT
22
Chain tensioner rod
880231
$5,68 Unit Price incl. VAT
23
Spacer screw M8
878868
$2,64 Unit Price incl. VAT
24
Special screw
1A006352
$29,76 Unit Price incl. VAT
25
Safety washer
849817
$1,15 Unit Price incl. VAT
26
Gasket ring
873233
$0,15 Unit Price incl. VAT
27
Chain 114 mesh
875411
$68,48 Unit Price incl. VAT
28
Timing gear
8756994
$60,67 Unit Price incl. VAT
29
screw M6x35
414838
$0,67 Unit Price incl. VAT
30
Camshaft gear post.
1A000759
Not Available
30
Camshaft gear post.
875880
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
