by

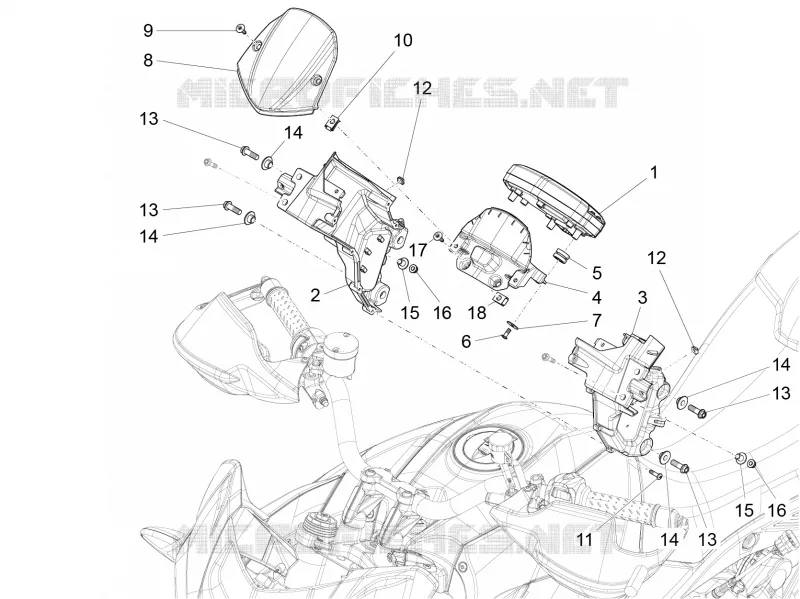

Instruments
18
17
16
16
15
15
9
7
8
6
2
1
5
4
3
14
14
14
14
13
13
13
13
12
12
11
10
1
Dashboard
2D000107
$1 504,05 Unit Price incl. VAT
2
Right instrument panel support
B044246
$25,82 Unit Price incl. VAT
3
Left instrument panel support
B044247
$25,82 Unit Price incl. VAT
4
Dashboard lockup
B044248
$19,99 Unit Price incl. VAT
5
Rubber spacer
AP8220150
$1,42 Unit Price incl. VAT
6
Self-tap screw 5x14
AP8150509
$0,51 Unit Price incl. VAT
7
Washer 5x20x1,5
AP8150255
$0,16 Unit Price incl. VAT
8
Dashboard lid
B045015
$17,29 Unit Price incl. VAT
9
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
10
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
11
Phillips screw, SWP M5x20
AP8152329
$0,69 Unit Price incl. VAT
12
Spring plate
CM017403
$0,50 Unit Price incl. VAT
13
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
14
T bush
AP8121716
$3,65 Unit Price incl. VAT
15
T bush
AP8121665
$4,36 Unit Price incl. VAT
16
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
17
Screw w/ flange M5x12
AP8152302
Not Available
18
Spring plate M5
248419
$0,67 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
