by
Drive shaft
9
7
8
6
4
3
4
2
2
1
5
5
5
3
1

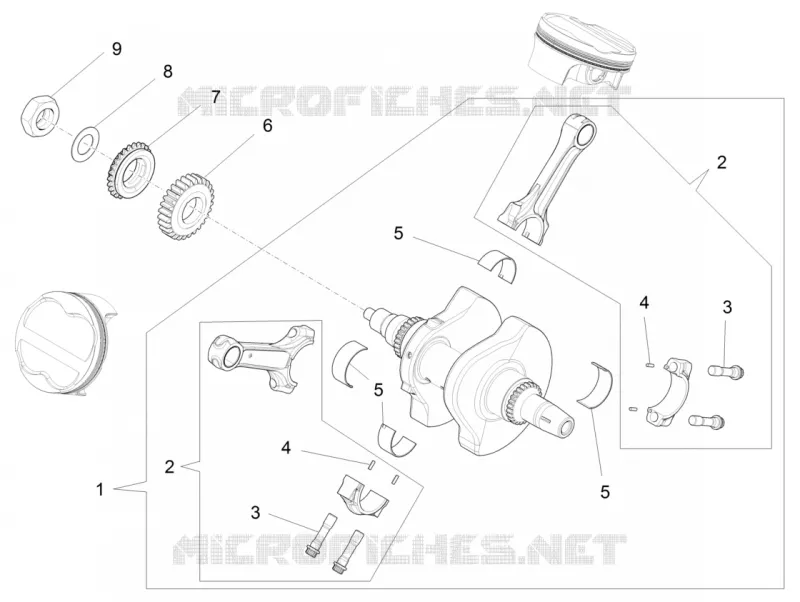

COMP. CRANKSHAFT WITH CONNECTING RODS
B0191060A
$1 910,65 Unit Price incl. VAT
2
Connecting rod cat B
8766665002
Not Available
2
Connecting rod cat A
8766665001
$156,03 Unit Price incl. VAT
3
Connecting rod screw
849131
$12,39 Unit Price incl. VAT
4
Roller
847906
$0,09 Unit Price incl. VAT
5
Bushing,yellow "C"
8781140004
$16,34 Unit Price incl. VAT
5
Bushing,blue "B"
8781140003
$14,81 Unit Price incl. VAT
5
Bushing, green "E"
8781140001
$16,34 Unit Price incl. VAT
5
Bushing,red "A"
8781140002
$16,34 Unit Price incl. VAT
6
Primary drive gear Z=40
CM159101
$167,40 Unit Price incl. VAT
7
Water pump pinion
B013373
$49,95 Unit Price incl. VAT
8
Flat washer
847915
$1,15 Unit Price incl. VAT
9
Nut
878296
$18,39 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
