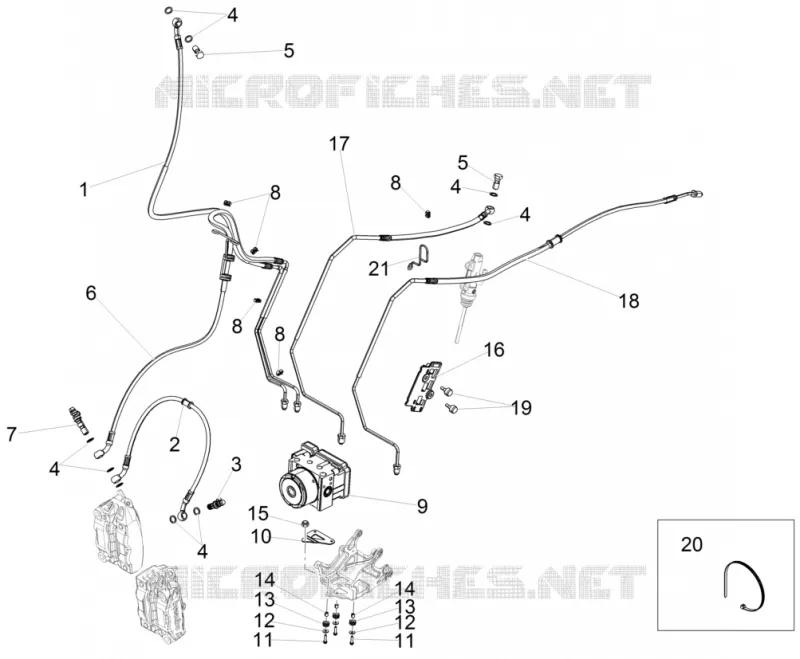

ABS Brake system
21
15
16
17
14
14
13
13
12
12
3
4
4
4
4
4
5
5
6
7
8
8
8
8
9
10
11
11
20
19
18
2
1
1
ABS unit right brake pump pipe
2B001144
$91,57 Unit Price incl. VAT
2
Front brake pipe clamp-clamp
2B001280
$43,09 Unit Price incl. VAT
3
Bleeder kit
AP8133945
$13,78 Unit Price incl. VAT
4
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
5
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
6
ABS unit brake pipe - front brake pin
2B001145
$117,37 Unit Price incl. VAT
7
Tube clamping screw
899811
$21,51 Unit Price incl. VAT
8
Spring
AP9100519
$5,73 Unit Price incl. VAT
9
ECU ABS Cluster
2D000193
$1 332,56 Unit Price incl. VAT
10
Plate
859789
$2,87 Unit Price incl. VAT
11
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
12
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
13
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
14
Spacer 6,5X10X11*
AP8221007
$3,65 Unit Price incl. VAT
15
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
16
Brake hose holder plate
2B001461
$15,22 Unit Price incl. VAT
17
ABS unit right brake pump pipe
2B001142
$117,37 Unit Price incl. VAT
18
Rear brake pipe
2B001143
$91,57 Unit Price incl. VAT
19
Rubber spacer
AP8706087
$4,62 Unit Price incl. VAT
20
Black hose 178x4
AP8120416
$5,38 Unit Price incl. VAT
21
Fairlead
2B001285
$5,00 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
