by

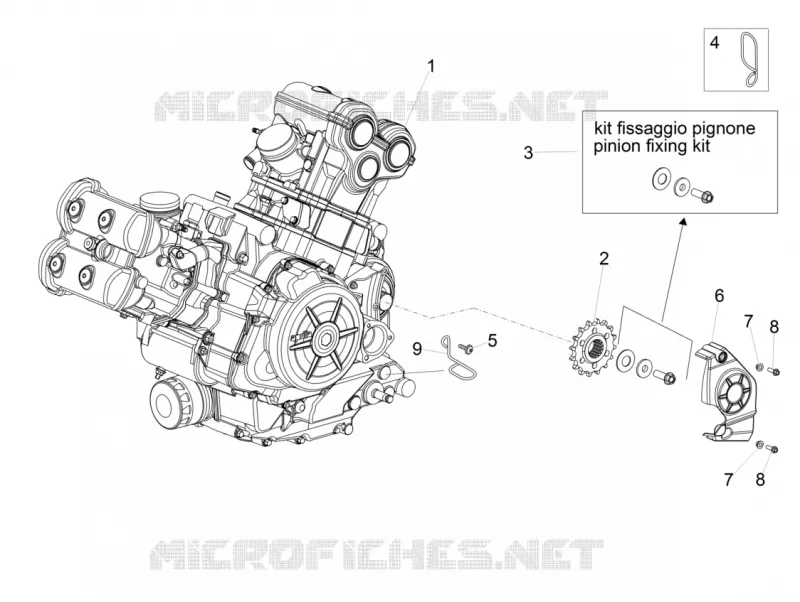

Engine-Completing part-Lever
2
1
9
8
8
7
7
6
5
4
3
1
PROD. ENGINE 1200 CP MY 15 USA X RIC
CM1607085
$5 698,51 Unit Price incl. VAT
2
Pinion Z=17
2B000220
$112,05 Unit Price incl. VAT
3
Pinion mounting kit
2R000246
$19,17 Unit Price incl. VAT
4
Cable-guide
AP8121889
$5,38 Unit Price incl. VAT
5
Cable-guide
AP8221114
$5,38 Unit Price incl. VAT
6
Sprocket cover
856069
$2,87 Unit Price incl. VAT
7
T bush
AP8121811
$3,38 Unit Price incl. VAT
8
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
9
Hex socket screw M8x12
AP8152055
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
