Parts Catalog
Clutch cover
6
Parts Diagram
Parts Catalog
Cylinder - Cylinder head
by
Clutch cover
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Blue steel washer D8,2x15x1
AP8206345
$3,65 Unit Price incl. VAT
2
Blue steel washer D8,4x16
AP8206277
$5,20 Unit Price incl. VAT
3
Outside circlip D8
AP8501467
$3,65 Unit Price incl. VAT
4
Water pump driven gear Z=30
AP8206328
Not Available
5
Idle gear assy Z=13/24
AP8206327
Not Available
6
O-ring D12,3x2,6
AP8206309
Not Available
7
Oil filler plug
AP8206245
Not Available
8
Cable guide+sc.+nut
AP8509334
$29,76 Unit Price incl. VAT
9
Oil plug seal D8x14
AP8502759
Not Available
10
Adjuster bridge
AP8206235
Not Available
11
O-ring D11,8x2,4
AP8206262
$3,65 Unit Price incl. VAT
12
Screw M6x12
AP8206202
Not Available
13
Pump inlet hose
AP8206320
Not Available
14
Screw M6x25
AP8206508
Not Available
15
Vis
AP8502571
$3,65 Unit Price incl. VAT
16
Screw M6x25
AP8206346
Not Available
17
Oil plug seal D6x12
AP8502758
Not Available
18
Water pump casing, grey
AP8206649
Not Available
19
Water pump body seal
AP8206334
Not Available
20
Pump body roller D4x10
AP8206338
Not Available
21
Water pump shaft+Impeller
AP8206335
Not Available
22
Roller D3x21,8
AP8508669
$3,65 Unit Price incl. VAT
23
Oil seal D10X18X4
AP8509130
$11,06 Unit Price incl. VAT
24
Vis
AP8502566
$3,65 Unit Price incl. VAT
25
Cap screw+shank M6x6
AP8502555
Not Available
26
Clutch cover+pin
AP8206798
Not Available
27
Clutch cover cpl., white
AP8206753
Not Available
27
Clutch cover cpl., orange
AP8206648
Not Available
27
Complete clutch cover
AP8206359
Not Available

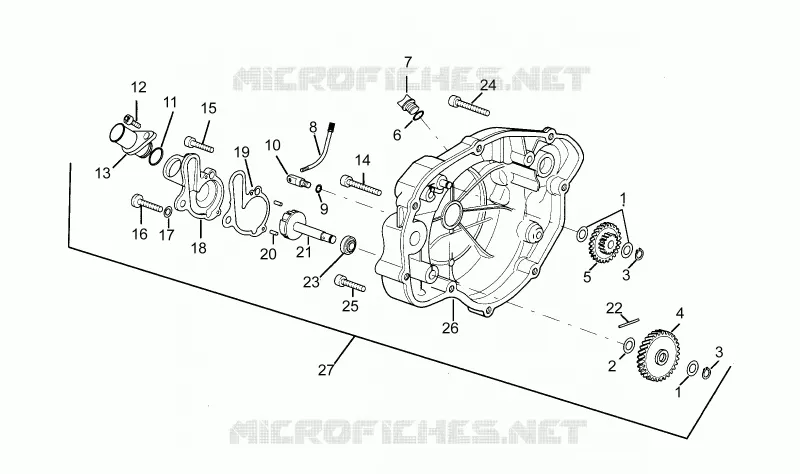

Find the detailed Clutch cover APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
