1
Engine displacement
50
2
Model
RX
3
Year
1994
4
Trim
RX 3 - 5 MARCE
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Body
by
Swing arm
Front fork
1
2
2
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
20
21
21
22
23
24
25
26
27
30
31
1
Front fork
AP8203385
Not Available
1
Front fork
AP8203487
Not Available
2
Gasket
AP8123436
Not Available
2
Rondelle étanchéité
AP8123206
$8,01 Unit Price incl. VAT
4
RH hub
AP8203443
Not Available
5
Half ring
AP8123212
Not Available
6
Gasket ring
AP8123211
Not Available
7
Screw M20x1,5
AP8123210
Not Available
8
Dust cover
AP8203444
Not Available
9
Bague de butée;
AP8203445
$4,85 Unit Price incl. VAT
10
Cup
AP8203446
Not Available
11
Gasket ring
AP8103392
Not Available
11
Joint spi
AP8103199
$8,17 Unit Price incl. VAT
12
Douille de coulissement;
AP8203447
Not Available
13
Sleeve cpl.
AP8203448
Not Available
14
Lower plate
AP8203451
Not Available
15
Bague inférieur fourche
AP8203588
$10,00 Unit Price incl. VAT
16
Plaque sup. fourche;
AP8203424
$178,91 Unit Price incl. VAT
17
Bouchon tube
AP8203251
$29,76 Unit Price incl. VAT
20
LH hub
AP8203450
Not Available
21
Vis
AP8123216
$3,65 Unit Price incl. VAT
22
Cavalier;
AP8203425
$18,01 Unit Price incl. VAT
23
Anneau racleur inf.
AP8101271
$3,65 Unit Price incl. VAT
24
Anneau support pare-poussière
AP8101272
$3,65 Unit Price incl. VAT
25
Roulement à rouleaux
AP8110024
$15,98 Unit Price incl. VAT
26
Roulement à billes
AP8110025
$10,00 Unit Price incl. VAT
27
Pare-poussière
AP8120211
$1,37 Unit Price incl. VAT
30
Hub+RH fork leg
AP8203811
Not Available
31
Hub+LH fork leg
AP8203810
Not Available

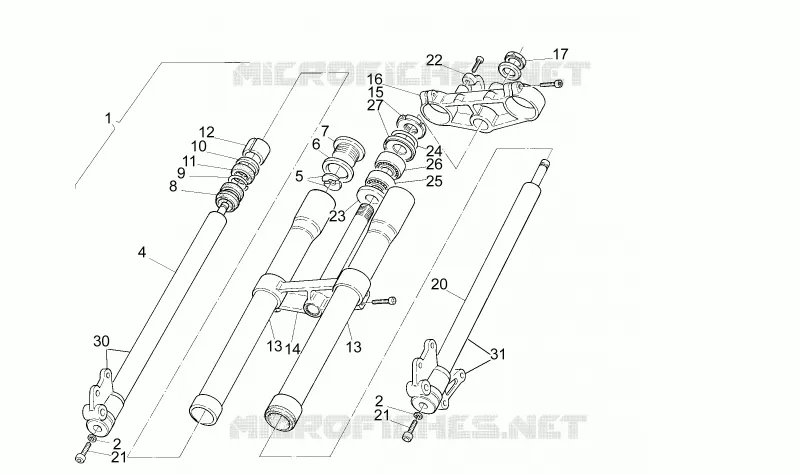

Find the detailed Front fork APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RX 3 - 5 MARCE

Clutch

Clutch

for RX 3 - 5 MARCE from 1994

Gear box selector

Gear box selector

for RX 3 - 5 MARCE from 1994

Cdi magneto assy

Cdi magneto assy

for RX 3 - 5 MARCE from 1994

Body

Body

for RX 3 - 5 MARCE from 1994

Front fork

Front fork

for RX 3 - 5 MARCE from 1994

Swing arm

Swing arm

for RX 3 - 5 MARCE from 1994

Exhaust unit

Exhaust unit

for RX 3 - 5 MARCE from 1994

Electrical system

Electrical system

for RX 3 - 5 MARCE from 1994

Handlebar - Controls

Handlebar - Controls

for RX 3 - 5 MARCE from 1994

Front wheel

Front wheel

for RX 3 - 5 MARCE from 1994

Drive shaft

Drive shaft

for RX 3 - 5 MARCE from 1994

Rear wheel

Rear wheel

for RX 3 - 5 MARCE from 1994

Frame

Frame

for RX 3 - 5 MARCE from 1994

Primary gear shaft

Primary gear shaft

for RX 3 - 5 MARCE from 1994

Primary gear shaft 5 Speed

Primary gear shaft 5 Speed

for RX 3 - 5 MARCE from 1994

Driven shaft

Driven shaft

for RX 3 - 5 MARCE from 1994

Driven shaft 5 speed gearbox

Driven shaft 5 speed gearbox

for RX 3 - 5 MARCE from 1994

Carburettor

Carburettor

for RX 3 - 5 MARCE from 1994

Crankcase

Crankcase

for RX 3 - 5 MARCE from 1994

Cylinder - Cylinder head

Cylinder - Cylinder head

for RX 3 - 5 MARCE from 1994

Clutch cover

Clutch cover

for RX 3 - 5 MARCE from 1994

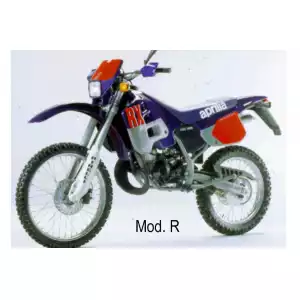

APRILIA RX 3 - 5 MARCE 1994
