Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Carburettor
by
Cylinder - Cylinder head
Crankcase
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
23
1
Clutch lever cpl.
AP8206257
Not Available
2
Clutch lever return spring
AP8206259
Not Available
3
Blue steel washer D15x25x0,5
AP8206278
Not Available
4
Oil seal D15x24x5
AP8509179
$9,50 Unit Price incl. VAT
5
Oil breather union
AP8206340
Not Available
6
Neutral indicator switch+seal
AP8206429
Not Available
7
Gasket 9,9x16x1
AP8206288
Not Available
8
Screw M6x40
AP8206276
Not Available
9
Crankcase pin D11,5x12
AP8206295
Not Available
10
Crankcase assy
AP8206379
Not Available
11
Screw M6x12
AP8206202
Not Available
12
O-ring D11,8x2,4
AP8206262
$3,65 Unit Price incl. VAT
13
Tachometer driven gear
AP8206251
Not Available
14
Hex stop scrw M12x1,25
AP8502589
Not Available
15
Joint vis
AP8502757
$3,65 Unit Price incl. VAT
16
Pin D8,51x7,6
AP8509209
$4,82 Unit Price incl. VAT
17
Tachometer drive spindle
AP8206299
Not Available
18
Tachometer driving gear
AP8206252
Not Available
19
Blue steel washer D8,4x16
AP8206277
$5,20 Unit Price incl. VAT
20
Oil drain hex screw M8x10
AP8502586
$3,65 Unit Price incl. VAT
21
Oil plug seal D8x14
AP8502759
Not Available
23
Tachometer ouput flange
AP8206240
Not Available

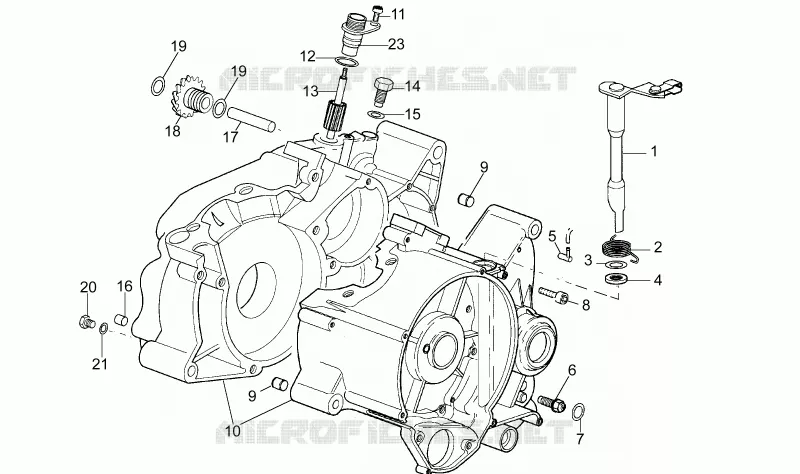

Find the detailed Crankcase APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
