Engine displacement
50
2
Model
RX
3
Year
1994
4
Trim
RX 3 - 5 MARCE
5
Parts Catalog
Cylinder - Cylinder head
6
Parts Diagram
Parts Catalog
Crankcase
by
Clutch cover
Cylinder - Cylinder head
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
O-ring D7,65x1,78
AP8502655
Not Available
2
Spring fixing plate
AP8508882
Not Available
3
Exhaust pipe fixing spring
AP8507839
Not Available
4
Joint torique
AP8502668
$4,36 Unit Price incl. VAT
5
Stud bolt M7x115
AP8508553
$11,66 Unit Price incl. VAT
6
Piston ring set D40,3
AP8206302
Not Available
6
Oversize piston rings D40,8
AP8206758
Not Available
6
Oversize piston rings D40,6
AP8206757
Not Available
7
Spark plug BR8ES
AP8206873
Not Available
8
Piston pin D12x34,5
AP8502846
$9,18 Unit Price incl. VAT
9
Stop ring D12
AP8206019
Not Available
10
Piston assy D40,3
AP8206250
Not Available
11
Cylinder base gasket
AP8206292
$4,82 Unit Price incl. VAT
12
Cylinder with piston D40,3
AP8206375
Not Available
13
Water hose union
AP8206618
Not Available
14
Cap self-locking nut M7x1
AP8206427
$3,65 Unit Price incl. VAT
15
Spring washer
AP8206721
Not Available
16
Gasket 14,1x22x1
AP8508560
Not Available
17
O-ring D51,5x1,78
AP8206285
$10,95 Unit Price incl. VAT
18
O-ring 104,3x3,5
AP8206286
$6,60 Unit Price incl. VAT
19
Screw with washer M4x10
AP8502559
Not Available
20
Thermostat
AP8206383
$63,50 Unit Price incl. VAT
21
Cylinder head, grey
AP8106692
Not Available
22
Oil plug seal D8x14
AP8502759
Not Available

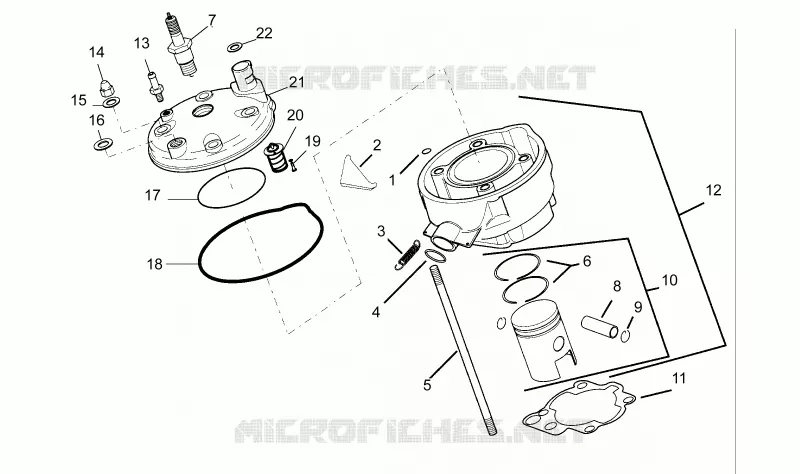

Find the detailed Cylinder - Cylinder head APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
