Engine displacement
50
2
Model
RX
3
Year
1994
4
Trim
RX 3 - 5 MARCE
5
Parts Catalog
Primary gear shaft 5 Speed
6

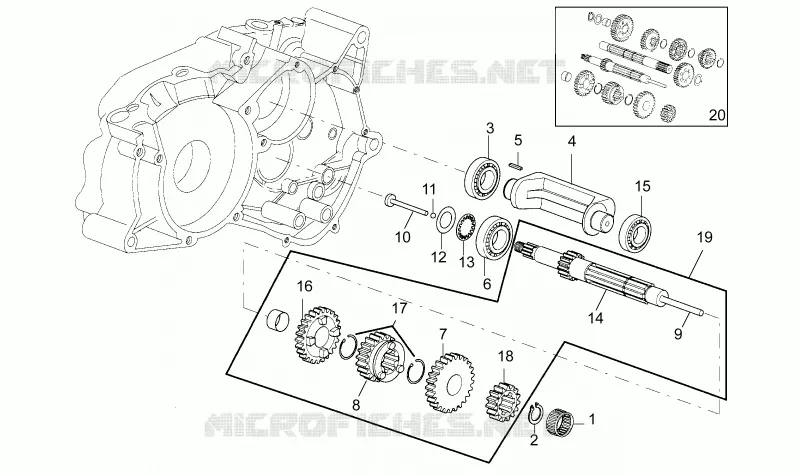

Parts Diagram
Parts Catalog
Primary gear shaft
by
Driven shaft
Primary gear shaft 5 Speed
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Roller cage DB14-12
AP8206281
Not Available
2
Outside circlip D14
AP8501478
Not Available
3
Bearing D15x35x11
AP8502624
Not Available
4
Balance shaft
AP8206231
Not Available
5
Key Balance shaft 4x4x8
AP8206263
$4,82 Unit Price incl. VAT
6
Bearing D17x40x12
AP8510039
Not Available
7
5th pinion gear Z=24
AP8206441
Not Available
8
3rd pinion gear Z=19
AP8206439
Not Available
9
Push rod D5x101,6
AP8206294
Not Available
10
Clutch push rod D13
AP8502836
Not Available
11
Ball 3/16"
AP8502652
Not Available
12
Blue steel washer D17,2x30
AP8502498
Not Available
13
Conical spring washer
AP8206260
Not Available
14
Primary gear shaft
AP8206435
Not Available
15
Bearing D17x40x12
AP8502626
Not Available
16
4th pinion gear Z=22
AP8206440
Not Available
17
Outside circlip D18
AP8501471
Not Available
18
1st pinion gear Z=16
AP8206438
Not Available
19
Primary gear shaft assy.5 spd.
AP8206723
Not Available
20
Gear box cpl.5 speed
AP8206449
Not Available
