Engine displacement
50
2
Model
RX
3
Year
1994
4
Trim
RX 3 - 5 MARCE
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Handlebar - Controls
Electrical system
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
25
26
27
1
Main wiring harness
AP8212425
Not Available
2
Lamp
AP8112854
Not Available
3
Headlight wiring w/harness
AP8212434
Not Available
4
Diodes cable
AP8212440
Not Available
5
Clignotement
AP8124235
$14,18 Unit Price incl. VAT
6
Turn indicator
AP8112687
Not Available
7
Fuse block support
AP8120614
Not Available
8
Spacer bush *
AP8221043
$3,65 Unit Price incl. VAT
9
Battery 12V-4Ah
AP8212110
Not Available
10
Transducer
AP8212474
Not Available
10
Coil
AP8212119
Not Available
11
Voltage regulator
AP8212121
$56,70 Unit Price incl. VAT
12
Horn
AP8212228
Not Available
13
Sparkplug cap
AP8220179
Not Available
14
Fuse and diode box
AP8212143
Not Available
15
Fuse 7,5A
AP8112244
Not Available
16
Support buzzer
AP8212165
$0,77 Unit Price incl. VAT
17
Feu arrière
AP8112531
$214,56 Unit Price incl. VAT
18
Taillight lens
AP8112633
Not Available
19
Phare avant
AP8212397
$22,69 Unit Price incl. VAT
20
Phare avant
AP8212397
$22,69 Unit Price incl. VAT
21
Douille en T
AP8121795
$3,38 Unit Price incl. VAT
22
Turn indicator
AP8120678
Not Available
23
Câblage négatif batt.
AP8112458
$6,15 Unit Price incl. VAT
23
Battery negative leads
AP8112573
Not Available
24
Douille
AP8121718
$3,38 Unit Price incl. VAT
25
Vitre clignotant
AP8112756
$2,97 Unit Price incl. VAT
26
Front headlight guard
AP8220262
Not Available
27
Lampholder
AP8212465
Not Available

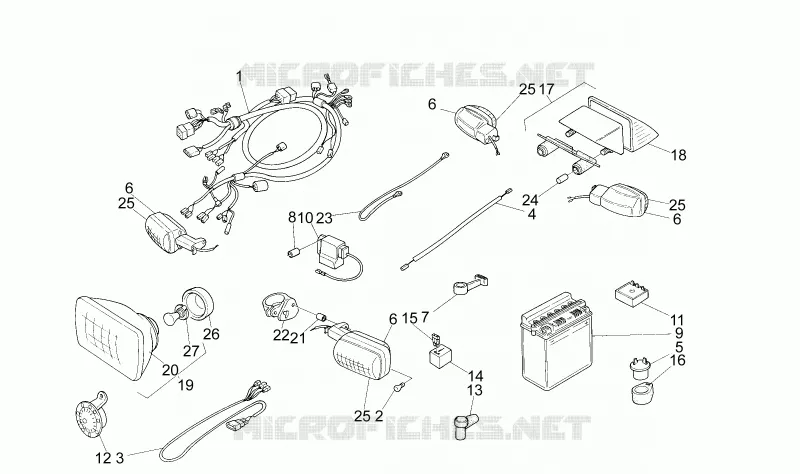

Find the detailed Electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
