1
Engine displacement
50
2
Model
RX
3
Year
1994
4
Trim
RX 3 - 5 MARCE
5
Parts Catalog
Primary gear shaft
6
Parts Diagram
Parts Catalog
Frame
by
Primary gear shaft 5 Speed
Primary gear shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Bearing D15x35x11
AP8502624
Not Available
2
Balance shaft
AP8206231
Not Available
3
Key Balance shaft 4x4x8
AP8206263
$4,82 Unit Price incl. VAT
4
Bearing D17x40x12
AP8502626
Not Available
5
Roller cage DB14-12
AP8206281
Not Available
6
Primary gear shaft
AP8206380
Not Available
6
Primary gear shaft
AP8206317
Not Available
7
Push rod D5x101,6
AP8206294
Not Available
8
Bearing D17x40x12
AP8510039
Not Available
9
Conical spring washer
AP8206260
Not Available
10
Ball 3/16"
AP8502652
Not Available
11
Clutch push rod D13
AP8502836
Not Available
12
Blue steel washer D17,2x30
AP8502498
Not Available
13
Gear box assy
AP8206373
Not Available

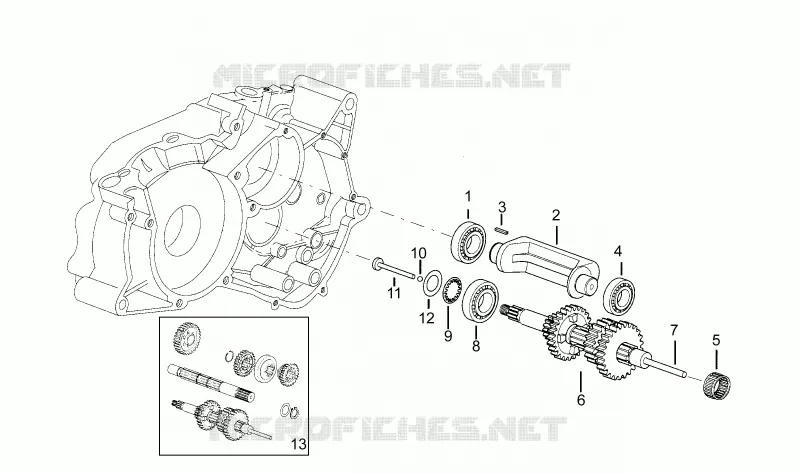

Find the detailed Primary gear shaft APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
