1
Engine displacement
1000
2
Model
RSV
3
Year
2004
4
Trim
RSV 1000
5
Parts Catalog

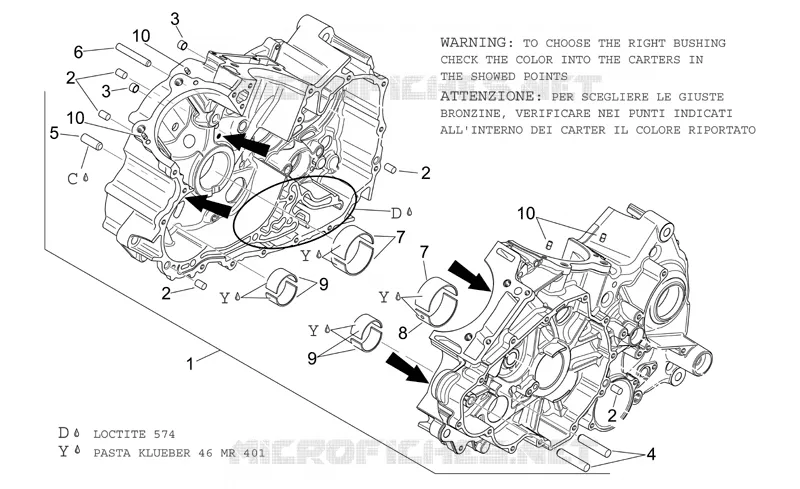

Crankcases I
6
Parts Diagram
Parts Catalog
Engine
by
Oil radiator
Crankcases I
10
10
10
9
9
8
7
7
6
5
4
3
3
2
2
2
2
1
1
Crankcase assy
AP0296961
Not Available
2
Pin M8x12
AP0632010
Not Available
3
Pin 10x8
AP0929500
Not Available
4
Pin M6x50
AP0229301
Not Available
5
Pin
AP0929930
Not Available
6
Pin
AP0229385
Not Available
7
Bushing half-shell, blue
AP0233745
$43,09 Unit Price incl. VAT
7
Bushing half-shell, red
AP0233746
$43,09 Unit Price incl. VAT
7
Bushing half-shell, yellow
AP0233748
Not Available
8
Bushing half-shell, yellow
AP0233743
Not Available
8
Bushing half-shell, blue
AP0233740
Not Available
8
Bushing half-shell, red
AP0233741
Not Available
9
Bushing half-shell, yellow
AP0233822
$43,09 Unit Price incl. VAT
9
Bushing half-shell, red
AP0233820
Not Available
9
Bushing half-shell, blue
AP0233711
Not Available
10
Pin 5x10
AP0929650
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
