1
Engine displacement
1000
2
Model
RSV
3
Year
2004
4
Trim
RSV 1000
5
Parts Catalog

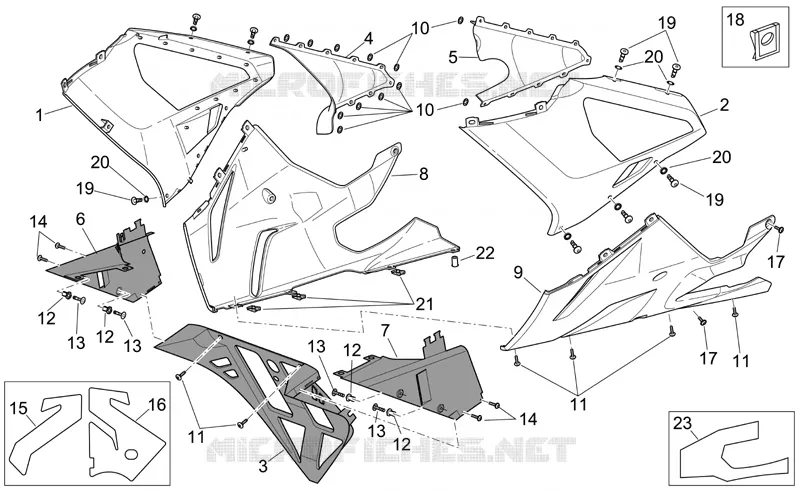

Front body - Fairings II
6
Parts Diagram
Parts Catalog
Water pump
by
Sealing and lubricating agents
Front body - Fairings II
23
22
21
20
20
20
19
19
19
18
17
17
16
15
14
14
13
13
13
13
12
12
12
12
11
11
11
10
10
9
8
7
6
5
4
3
2
1
1
RH side panel upper, red
AP8179453
Not Available
1
RH side panel upper v.blu
AP8184682
Not Available
1
RH side panel upper, black
AP8184386
Not Available
1
RH side panel upper v.grigio
AP8184335
Not Available
1
RH side panel upper, white
AP8179463
Not Available
1
RH side panel upper v.grigio
AP8184318
Not Available
1
RH side panel upper, red
AP8184352
Not Available
1
RH side panel upper v.argento
AP8184701
Not Available
1
RH side panel upper, black
AP8179265
$724,39 Unit Price incl. VAT
1
RH side panel upper, black
AP8184401
Not Available
2
LH side panel upper v.grigio
AP8184319
Not Available
2
LH side panel upper v.argento
AP8184702
Not Available
2
LH side panel upper, red
AP8184353
Not Available
2
LH side panel upper v.blu
AP8184683
$724,39 Unit Price incl. VAT
2
LH side panel upper, black
AP8179266
$724,39 Unit Price incl. VAT
2
LH side panel upper, white
AP8179464
Not Available
2
LH side panel upper, black
AP8184387
Not Available
2
LH side panel upper v.grigio
AP8184336
Not Available
2
LH side panel upper, red
AP8179454
Not Available
2
LH side panel upper, black
AP8184402
Not Available
3
Pillar
AP8158128
$742,05 Unit Price incl. VAT
4
RH puller
AP8179353
Not Available
4
RH puller
AP8179261
$10,00 Unit Price incl. VAT
5
LH puller
AP8179262
$10,00 Unit Price incl. VAT
5
LH puller
AP8179354
Not Available
6
RH internal fairing
AP8158126
Not Available
7
LH internal fairing
AP8158127
Not Available
8
Lower RH side panel, grey
AP8179389
$673,81 Unit Price incl. VAT
8
RH side panel,lower
AP8184703
Not Available
8
Lower RH side panel, grey
AP8179267
$673,81 Unit Price incl. VAT
8
RH side panel,lower v.bianco
AP8184354
Not Available
8
RH side panel,lower v.nero
AP8184388
Not Available
8
RH side panel,lower v.rosso
AP8184320
Not Available
8
RH side panel,lower
AP8184684
Not Available
9
LH side panel, lower v.nero
AP8184389
Not Available
9
LH side panel, lower
AP8184685
Not Available
9
Lower LH side panel, grey
AP8179390
Not Available
9
LH side panel, lower
AP8184704
Not Available
9
LH side panel, lower v.rosso
AP8184321
Not Available
9
LH side panel, lower v.bianco
AP8184355
$673,81 Unit Price incl. VAT
9
Lower LH side panel, grey
AP8179268
Not Available
10
Washer for shafts D5
AP8150450
$0,25 Unit Price incl. VAT
11
Hex socket screw M5x16
AP8152268
$3,38 Unit Price incl. VAT
12
Rivet, female
AP8144616
$0,23 Unit Price incl. VAT
13
Rivet, male
AP8144563
$0,32 Unit Price incl. VAT
14
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
15
Acoustic insulation panel, LH
AP8117268
Not Available
16
Acoustic insulation panel, RH
AP8117267
Not Available
17
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
18
Special clip
AP8101985
$5,38 Unit Price incl. VAT
19
screw
AP8121663
$7,23 Unit Price incl. VAT
20
Front dust cover ring
AP8120622
$3,65 Unit Price incl. VAT
21
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
22
Rubber w/ insert M4
AP8144564
$4,49 Unit Price incl. VAT
23
Heat protection
AP8166881
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
