Engine displacement
1000
2
Model
RSV
3
Year
2004
4
Trim
RSV 1000
5
Parts Catalog
Electrical system I
6
Parts Diagram
Parts Catalog
Acc. - Performance parts III
by
Front wheel R version
Electrical system I
29
28
27
26
25
25
24
24
23
22
22
22
21
20
19
18
17
16
15
14
13
12
11
10
9
9
8
8
7
7
6
5
4
3
2
1
1
Main switch - steering lock
AP8127555
$301,86 Unit Price incl. VAT
2
Wiring
AP8127429
Not Available
3
Voltage regulator
AP8127144
$101,25 Unit Price incl. VAT
4
Main wiring harness
AP8127150
Not Available
4
Main wiring harness
AP8127635
Not Available
4
Main wiring harness
AP8127681
Not Available
5
Horn
AP8127391
Not Available
6
Diode
AP8212588
$5,38 Unit Price incl. VAT
7
Relay 12V-30A
AP8224462
$14,17 Unit Price incl. VAT
8
Rubber spacer *
AP8220283
$0,75 Unit Price incl. VAT
9
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
10
HT coil
AP0266070
Not Available
11
HT wire
AP0266145
Not Available
12
HT wire
AP0266140
Not Available
13
Int.sparkplug cap
AP0265246
Not Available
14
Coil holder
AP8134889
Not Available
15
Shear rivet M8x40
AP8150351
$7,62 Unit Price incl. VAT
15
Shear rivet M8x28
AP8152238
$3,65 Unit Price incl. VAT
16
Hex socket screw M8x55
AP8150046
$3,65 Unit Price incl. VAT
16
Hex socket screw M8x45
AP8150164
$3,65 Unit Price incl. VAT
17
Spacer *
AP8221171
$3,65 Unit Price incl. VAT
18
Cable-guide
AP8120428
$5,38 Unit Price incl. VAT
19
Hex socket screw M6x50
AP8150202
$3,65 Unit Price incl. VAT
20
Spacer 6,5x10x19*
AP8121020
$3,65 Unit Price incl. VAT
21
Rubber spacer
AP8220238
$4,62 Unit Price incl. VAT
22
T bush *
AP8121075
$3,65 Unit Price incl. VAT
23
Hex socket screw M6x30
AP8152128
$0,34 Unit Price incl. VAT
24
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
25
Washer 6,6x18*
AP8150179
$0,08 Unit Price incl. VAT
26
Fuse
AP8176099
Not Available
27
Fuse
AP8176100
$4,82 Unit Price incl. VAT
28
Fuse 15A
AP8127345
Not Available
29
T bush *
AP8121075
$3,65 Unit Price incl. VAT

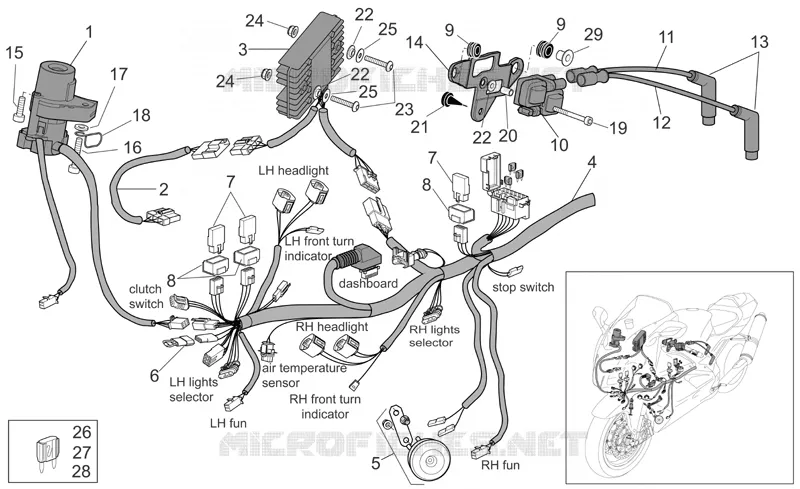

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
