1
Engine displacement
1000
2
Model
RSV
3
Year
2004
4
Trim
RSV 1000
5
Parts Catalog
Oil tank
6

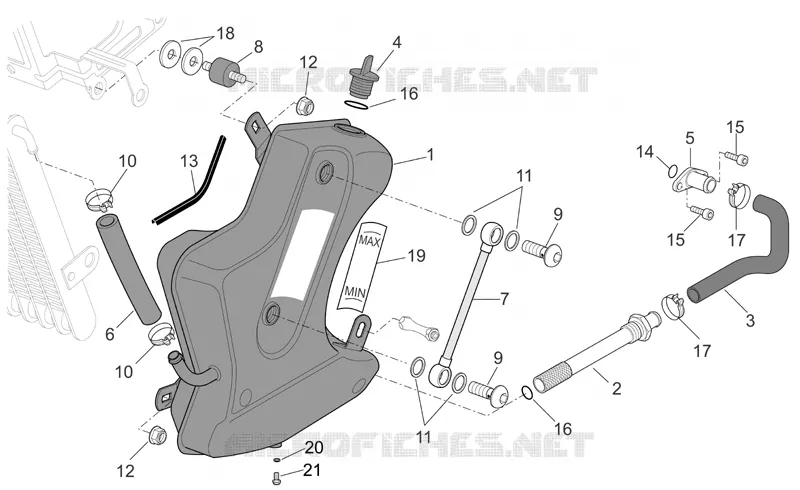

Parts Diagram
Parts Catalog
Rear body - Rear fairing II
by
Frame I
Oil tank
1
7
6
5
4
3
2
21
20
19
18
17
17
16
16
15
15
14
13
12
12
11
11
10
10
9
9
8
1
Inox Oil tank
AP8168978
Not Available
1
Oil tank, black
AP8158120
Not Available
2
Oil filter cpl.
AP8102828
Not Available
3
Oil pipe
AP8144090
$14,30 Unit Price incl. VAT
4
Oil filler cap
AP8102618
Not Available
5
Oil pipe
AP8106387
Not Available
6
Oil pipe 12x19
AP8106389
Not Available
7
Oil level pipe
AP8144200
Not Available
8
Silent-block
AP8144061
$4,62 Unit Price incl. VAT
9
Oil pipe screw
AP8121409
Not Available
10
White hose clip D17,5x8
AP8102349
$0,85 Unit Price incl. VAT
11
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
12
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
13
Gasket 10X5
AP8144606
$5,38 Unit Price incl. VAT
14
O-ring 3056
AP8120196
Not Available
15
Hex socket screw M6x16
AP8150137
$3,70 Unit Price incl. VAT
16
O-ring 3075
AP8120190
$3,65 Unit Price incl. VAT
17
Hose clip 20x8
AP8102786
$1,10 Unit Price incl. VAT
18
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
19
Oil decal Max-Min
AP8167560
$6,30 Unit Price incl. VAT
20
Washer D8x16x1,5
AP8121862
$3,65 Unit Price incl. VAT
21
Screw w/ flange
AP8152285
$0,51 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
