1
Engine displacement
1000
2
Model
RSV
3
Year
2004
4
Trim
RSV 1000
5
Parts Catalog

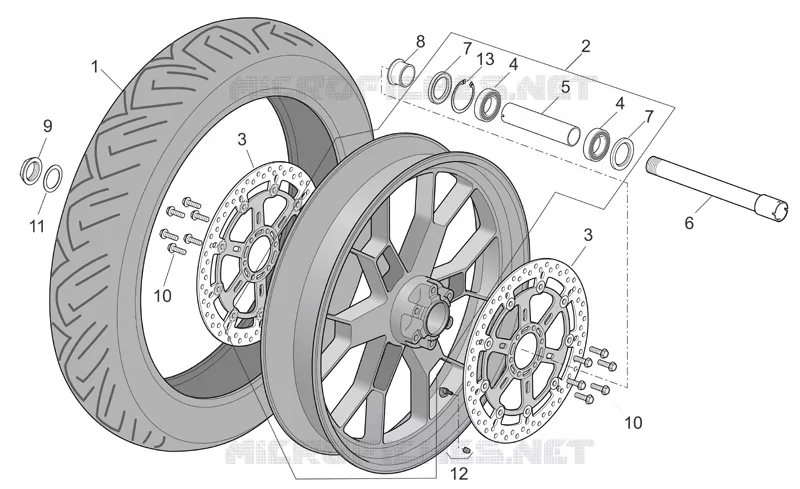

Front wheel Factory - Dream I
6
Parts Diagram
Parts Catalog
Connecting rod - rear shock abs.
by
Electrical system II
Front wheel Factory - Dream I
13
12
11
10
10
9
8
7
7
6
5
4
4
3
3
2
1
1
Front/rear tyre 120/70 ZR 17" Pirelli
AP8109284
Not Available
1
Front/rear tyre 120/70 ZR 17" Pirelli
AP8109256
Not Available
1
Tyre
0000000
Not Available
2
Front wheel
AP8128041
Not Available
2
Front wheel, blue OZ-Alu
AP8108994
Not Available
2
Front wheel, black
AP8128228
$550,39 Unit Price incl. VAT
2
Front wheel, red
AP8128204
Not Available
2
Front wheel, gold
853375
Not Available
2
Front wheel, gold
AP8108932
Not Available
3
Front brake disc 320
AP8113926
Not Available
3
Front brake disc
AP8133751
Not Available
4
Bearing 25x47x12
AP8110094
$15,23 Unit Price incl. VAT
5
Internal spacer
AP8125843
$18,12 Unit Price incl. VAT
6
Front wheel spindle
AP8125827
Not Available
7
Gasket ring 30x47x7
AP8125841
$3,70 Unit Price incl. VAT
8
Front RH whe.ou.spacer
AP8125728
$7,42 Unit Price incl. VAT
9
Wheel spindle nut
AP8152335
$8,12 Unit Price incl. VAT
10
Screw w/ flange M8x20
AP8152286
$0,25 Unit Price incl. VAT
11
Washer 25,2x36x1
AP8152323
$3,70 Unit Price incl. VAT
12
Tubeless tyre valve 90°
AP8104728
$15,82 Unit Price incl. VAT
13
Snap ring d47
AP8125842
$0,67 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
