1
Engine displacement
1000
2
Model
RSV
3
Year
2004
4
Trim
RSV 1000
5
Parts Catalog
Front master cilinder
6
Parts Diagram
Parts Catalog
Front body - Duct
by
Acc. - Performance parts III

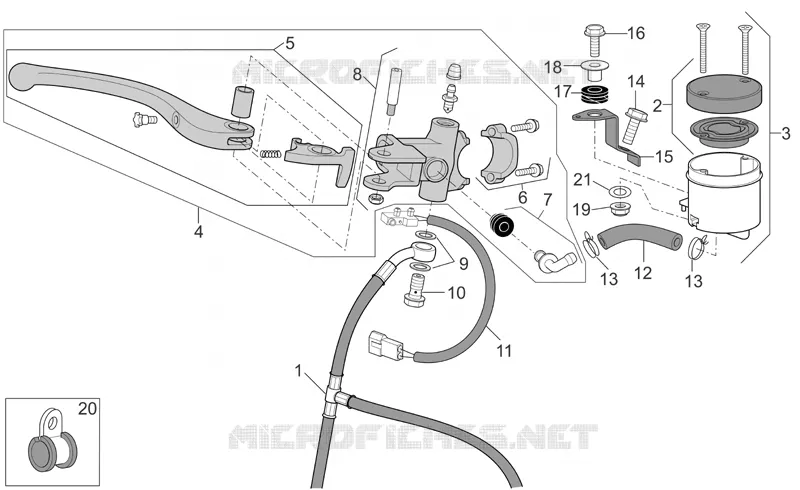

Front master cilinder
21
20
19
18
17
16
15
14
13
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Front brake hose
AP8133618
$130,65 Unit Price incl. VAT
1
Front brake hose
AP8113984
Not Available
2
Pil brake tank plug
AP8113598
$31,33 Unit Price incl. VAT
3
Brake oil tank
AP8113499
$49,79 Unit Price incl. VAT
4
Front master cilinder
AP8133663
Not Available
5
Front brake lever
AP8133664
Not Available
6
U-bolt
AP8133665
$19,68 Unit Price incl. VAT
7
Rear brake pump union
AP8213057
$6,80 Unit Price incl. VAT
8
Lever pin
AP8133666
$4,00 Unit Price incl. VAT
9
Gasket
AP8121915
Not Available
10
Oil pipe screw
AP8133594
$8,01 Unit Price incl. VAT
11
Stop switch
AP8127432
$68,55 Unit Price incl. VAT
12
Rubber pipe
AP8144151
Not Available
13
Hose clamp D10,1
AP8101595
$0,32 Unit Price incl. VAT
14
Hex socket screw M6x12
AP8150537
$3,65 Unit Price incl. VAT
14
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
14
Screw M6x10
AP8152462
Not Available
15
Oil tank plate
AP8134383
$15,98 Unit Price incl. VAT
15
Oil tank plate
AP8154073
$10,00 Unit Price incl. VAT
16
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
16
Hex socket screw M6x20
AP8224470
$0,34 Unit Price incl. VAT
16
Screw M6x25
AP8152464
Not Available
17
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
18
T bush
AP8221023
$0,93 Unit Price incl. VAT
19
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
19
Nut M6
AP8152466
$9,41 Unit Price incl. VAT
19
Stainless cap nut M6
AP8150474
$3,65 Unit Price incl. VAT
20
Brake hose hanger
AP8134167
$1,49 Unit Price incl. VAT
21
Spring washer 6,4x11x0,5*
AP8150429
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
