1
Engine displacement
1000
2
Model
RSV
3
Year
2004
4
Trim
RSV 1000
5
Parts Catalog

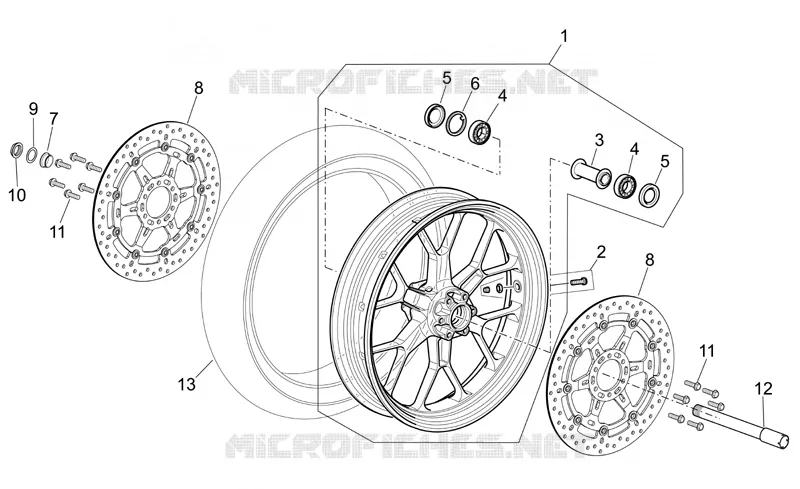

Front wheel Factory - Dream II
6
Parts Diagram
Parts Catalog
Throttle body
by
Exhaust pipe
Front wheel Factory - Dream II
13
12
11
11
10
9
8
8
7
6
5
5
4
4
3
2
1
1
Front wheel, blue
AP8128133
Not Available
2
Tubeless tyre valve
AP8101744
$6,30 Unit Price incl. VAT
3
Internal spacer
AP8128169
$29,51 Unit Price incl. VAT
4
Ball bearing 25x47x12
AP8125777
$12,81 Unit Price incl. VAT
5
Gasket ring 30x47x7
AP8125773
$2,58 Unit Price incl. VAT
6
Circlip
AP8125779
$3,65 Unit Price incl. VAT
7
Front RH whe.ou.spacer
AP8125728
$7,42 Unit Price incl. VAT
8
Front brake disc 320
AP8113926
Not Available
9
Washer 25,2x36x1
AP8152323
$3,70 Unit Price incl. VAT
10
Wheel spindle nut
AP8152335
$8,12 Unit Price incl. VAT
11
Screw w/ flange M8x20
AP8152286
$0,25 Unit Price incl. VAT
12
Front wheel spindle
AP8125827
Not Available
13
Tyre
0000000
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
