1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog
Air box
6

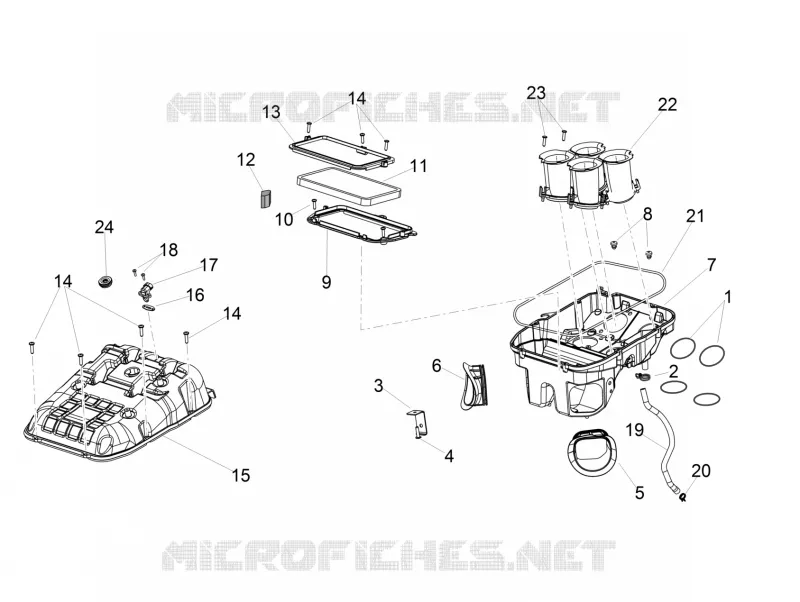

Parts Diagram
Parts Catalog
Cover
by
Taillight
Air box
24
23
22
21
20
19
18
17
16
15
14
14
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
O-ring 56,82X2,62
893240
$4,89 Unit Price incl. VAT
2
Hose clamp
CM002912
$0,15 Unit Price incl. VAT
3
Bracket
890938
$1,81 Unit Price incl. VAT
4
Phillips screw, SWP M5x20
AP8152329
$0,69 Unit Price incl. VAT
5
LH Hose
858880
$3,49 Unit Price incl. VAT
6
RH Hose
858932
$3,54 Unit Price incl. VAT
7
Filter housing base
858931
$15,58 Unit Price incl. VAT
8
Rubber spacer
AP8144087
$5,38 Unit Price incl. VAT
9
Maintenance
895109
$3,82 Unit Price incl. VAT
10
Phillips screw, SWP M5x20
AP8152329
$0,69 Unit Price incl. VAT
11
Air filter
AP8104329
$22,91 Unit Price incl. VAT
12
Filter blow-by
894015
$0,93 Unit Price incl. VAT
13
Covers
895110
$3,82 Unit Price incl. VAT
14
Phillips screw, SWP M5x20
AP8152329
$0,69 Unit Price incl. VAT
15
Filter housing cover
2B003762
$32,28 Unit Price incl. VAT
16
Gasket
GU30027931
$5,38 Unit Price incl. VAT
17
Air temp. Sensor
GU30729330
$34,55 Unit Price incl. VAT
18
Self-tap screw 2,9x12
AP8150421
$3,70 Unit Price incl. VAT
19
pipe blow-by
858808
$52,52 Unit Price incl. VAT
20
Hose clamp
CM001927
$3,38 Unit Price incl. VAT
21
Gasket
858881
$4,59 Unit Price incl. VAT
22
Intake duct
896875
$2,92 Unit Price incl. VAT
23
screw
893132
$1,18 Unit Price incl. VAT
24
Cover
895824
$0,58 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
