1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog
Rear wheel
6

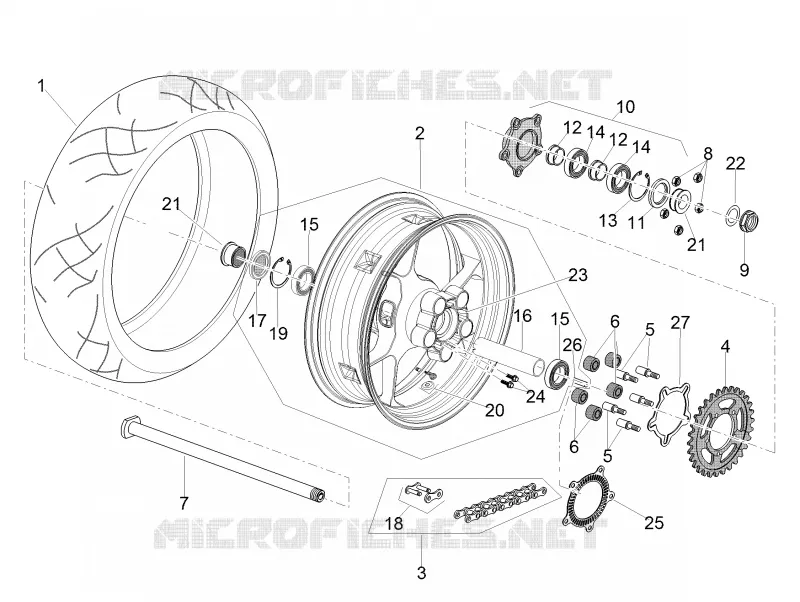

Parts Diagram
Parts Catalog
Front fork
by
Front wheel
Rear wheel
27
26
25
24
23
22
21
21
20
19
18
17
16
15
15
14
14
13
12
12
11
10
9
8
7
6
6
5
5
4
3
2
1
1
Rear tyre 190/55 ZR 17"
2B004016
$657,97 Unit Price incl. VAT
2
Rear wheel, black 6"x17"
896756
$304,50 Unit Price incl. VAT
3
Chain cpl conn.link
896358
$206,19 Unit Price incl. VAT
4
Chain ring Z=42
CM224903
$120,49 Unit Price incl. VAT
5
cushion
2B002611
$9,41 Unit Price incl. VAT
6
Flexible coupling rubber
B043317
$8,65 Unit Price incl. VAT
7
Rear wheel spindle
858731
Not Available
8
DAX nut M10x1,25
2B002634
$6,12 Unit Price incl. VAT
9
Wheel spindle nut M25x1,5
AP8152324
$7,30 Unit Price incl. VAT
10
Crown holder cpl.
AP8125730
Not Available
11
Gasket ring 38x55x7
AP8121213
$8,01 Unit Price incl. VAT
12
Spring drive spacer
AP8125732
$29,76 Unit Price incl. VAT
13
Inside circlip d55
AP8121212
$7,81 Unit Price incl. VAT
14
Bearing 30x55x13
AP8110081
$16,34 Unit Price incl. VAT
15
Bearing 6205-2rs1 25x52x15
AP8110093
$15,98 Unit Price incl. VAT
16
Internal spacer
AP8128170
$36,58 Unit Price incl. VAT
17
Gasket ring 38x52x7
AP8125838
$8,01 Unit Price incl. VAT
18
Connecting link
859754
$8,40 Unit Price incl. VAT
19
Snap ring d52
AP8125839
$8,01 Unit Price incl. VAT
20
Tubeless tyre valve
AP8101744
$6,30 Unit Price incl. VAT
21
Rear wheel spacer
AP8121592
$15,31 Unit Price incl. VAT
22
Washer 25,2x36x1
AP8152323
$3,70 Unit Price incl. VAT
23
Primary drive / Cush drive
2B000639R
$74,28 Unit Price incl. VAT
24
Pre-coated M10x30 SHC screw
2B002444
$3,65 Unit Price incl. VAT
25
Phonic wheel ABS
890960
$18,18 Unit Price incl. VAT
26
Pin 10x20
AP8150463
$3,65 Unit Price incl. VAT
27
Flange
2B003043
$86,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
