1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog
Rear shock absorber
6

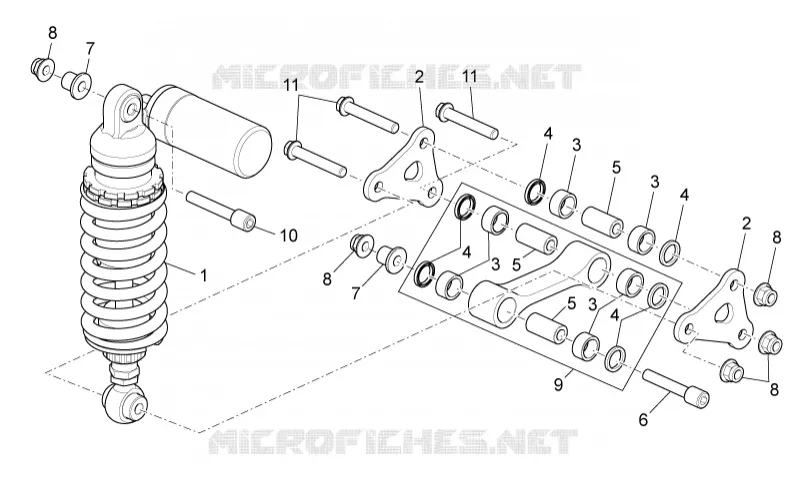

Parts Diagram
Parts Catalog
Fuel tank
by
Rear body I
Rear shock absorber
11
11
10
9
8
8
8
8
7
7
6
5
5
5
4
4
4
4
3
3
3
3
2
2
1
1
Rear shock absorber
2B001654
$696,60 Unit Price incl. VAT
2
Double conrod
2B003070
$31,21 Unit Price incl. VAT
3
Roller cage
AP8110065
$7,02 Unit Price incl. VAT
4
Oil seal D18x24x3
AP8110068
$3,65 Unit Price incl. VAT
5
Piston pin L=36
AP8146518
$8,91 Unit Price incl. VAT
6
Hex socket screw M10x72
AP8152412
$10,95 Unit Price incl. VAT
7
T bush *
AP8121155
$1,77 Unit Price incl. VAT
8
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
9
Single conrod comp.
AP81465164
$232,70 Unit Price incl. VAT
10
Hex socket screw M10x59
AP8152411
$13,28 Unit Price incl. VAT
11
Screw w/ flange M10x61
AP8152413
$11,41 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
