1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog

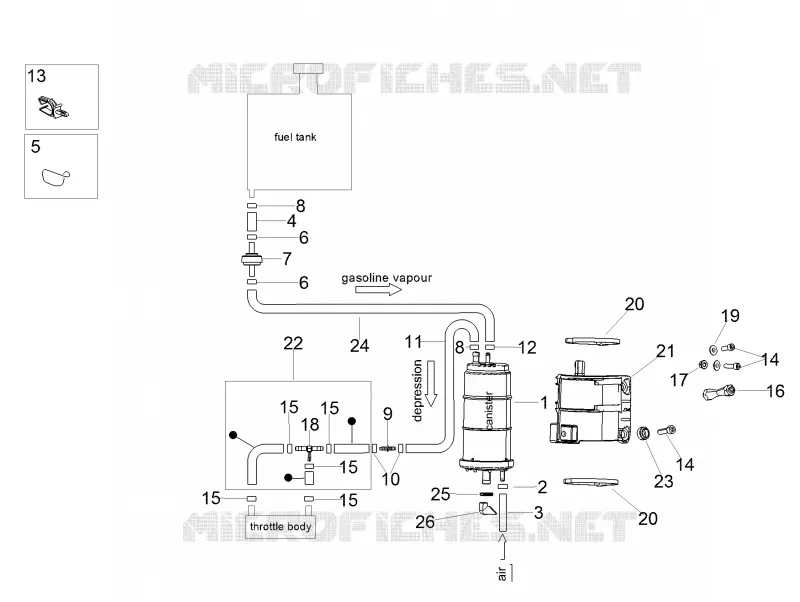

Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Lock hardware kit
by
Foot rests
Fuel vapour recover system
26
25
24
23
22
21
20
20
19
18
17
16
15
15
15
15
15
14
14
13
12
11
10
9
8
8
7
6
6
5
4
3
2
1
1
Canister
2B002632
$30,77 Unit Price incl. VAT
2
Hose clamp
AP8102520
$0,26 Unit Price incl. VAT
3
Fuel pipe 8x13
890499
$4,46 Unit Price incl. VAT
4
pipe SAE 30 d.12,7x6,35
856063
$41,29 Unit Price incl. VAT
5
Cable-guide
AP8221150
$3,65 Unit Price incl. VAT
6
Hose clamp 12,5x8
AP8102239
$0,84 Unit Price incl. VAT
7
Pressure valve
AP8104614
$75,62 Unit Price incl. VAT
8
Hose clip, green D11x6,6x1
AP8120446
$0,75 Unit Price incl. VAT
9
Choke hold
AP8121267
$11,69 Unit Price incl. VAT
10
Hose clamp d.9,5
AP8102998
$3,65 Unit Price incl. VAT
11
Hose SAE 30 R12A-3/16"
2B003692
$25,10 Unit Price incl. VAT
12
White hose clip d.13x6
AP8102764
$1,86 Unit Price incl. VAT
13
Fairlead d18
AP8221311
$5,38 Unit Price incl. VAT
14
Hex socket screw M6x20
AP8150044
$3,65 Unit Price incl. VAT
15
Hose clamp
CM001901
$0,76 Unit Price incl. VAT
16
Spacer
894933
$12,15 Unit Price incl. VAT
17
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
18
3-way union
AP8104666
$4,98 Unit Price incl. VAT
19
Special washer
AP8150536
$10,76 Unit Price incl. VAT
20
Black hose
AP8141017
$0,28 Unit Price incl. VAT
21
Support bracket
2B003441
$10,76 Unit Price incl. VAT
22
Shed pipe assembly
2B003684
$75,13 Unit Price incl. VAT
23
Bush
2B003714
$3,65 Unit Price incl. VAT
24
Hose SAE 30 R12A-3/16"
2B003691
$39,97 Unit Price incl. VAT
25
Ventilation plug
AP8127601
$3,70 Unit Price incl. VAT
26
Hose clamp
AP8102520
$0,26 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
