1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog
ABS brake system
6
Parts Diagram
Parts Catalog
Taillight
by
Frame II

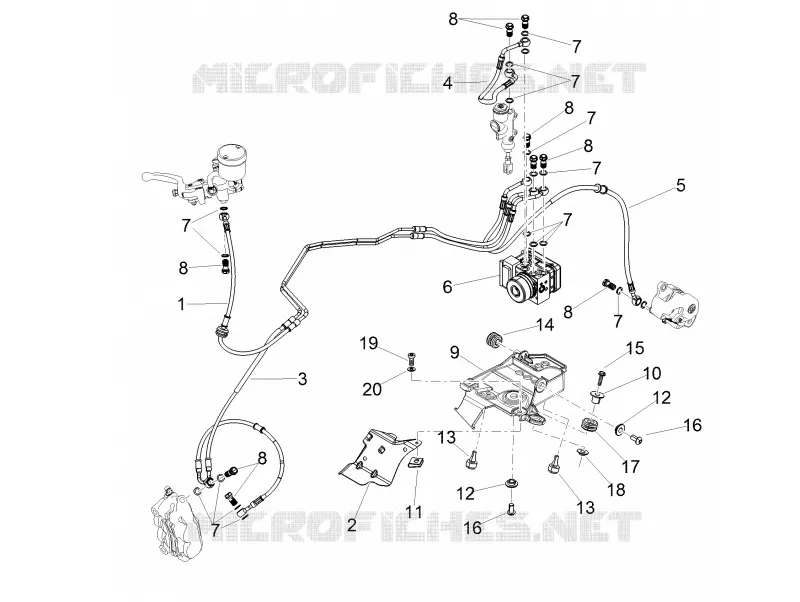

ABS brake system
1
20
19
18
17
16
16
15
14
13
13
12
12
11
10
9
8
8
8
8
8
8
7
7
7
7
7
7
7
7
6
5
4
3
2
1
Front brake pipe pump-Hecu ABS
2B003082
$320,50 Unit Price incl. VAT
2
Protection
B045095
$30,28 Unit Price incl. VAT
3
Front brake pipe Hecu ABS-clamp
2B002997
$274,43 Unit Price incl. VAT
4
Rear brake pipe pump-Hecu ABS
2B003508
$114,25 Unit Price incl. VAT
5
Brake calliper-HECU pipe
2B003509
$114,25 Unit Price incl. VAT
6
ABS electrohydraulic unit, prefilled
2D000265
$2 512,96 Unit Price incl. VAT
7
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
8
Oil pipe screw
2B001983
$8,01 Unit Price incl. VAT
9
ABS control unit support
B044551
$15,98 Unit Price incl. VAT
10
T bush
AP8221023
$0,93 Unit Price incl. VAT
11
Clip M4
AP8102381
$1,09 Unit Price incl. VAT
12
Bush d.10-h.3,5
AP9100053
$1,70 Unit Price incl. VAT
13
Rubber spacer
AP8706087
$4,62 Unit Price incl. VAT
14
Rubber spacer *
AP8120223
$0,95 Unit Price incl. VAT
15
Screw w/ flange M5x25
AP8152275
Not Available
16
Hex socket screw M6x12
AP8152186
$0,16 Unit Price incl. VAT
17
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
18
Bush
AP8121032
$0,59 Unit Price incl. VAT
19
Hex socket screw M4x10
AP8152043
$0,15 Unit Price incl. VAT
20
Washer 4,3x12x1
AP8150011
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
