1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog
Fuel tank
6

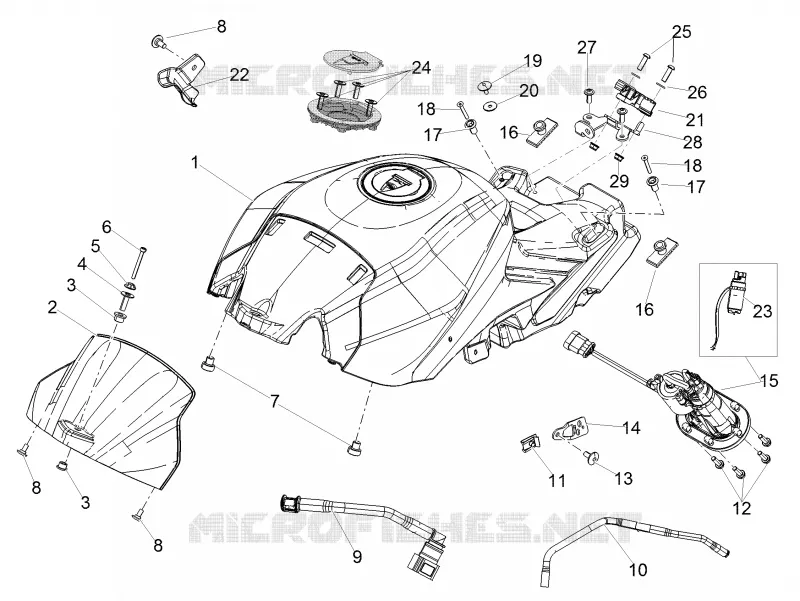

Parts Diagram
Parts Catalog
Front wheel
by
Rear shock absorber
Fuel tank
29
28
27
26
25
24
23
22
21
20
19
18
18
17
17
16
16
15
14
13
12
11
10
9
8
8
8
7
6
5
4
3
3
2
1
1
Complete black painted fuel tank
2H001780000XN2
Not Available
1
Fuel tank, grey.Pulsar
2H001818000EU
Not Available
2
Tank cover
B04454700XN2
$213,64 Unit Price incl. VAT
3
Silent-block
AP8101372
$4,62 Unit Price incl. VAT
4
Bush Fixing
B044548
$15,31 Unit Price incl. VAT
5
Special washer
AP8150536
$10,76 Unit Price incl. VAT
6
Hex socket screw M6x45
AP8150403
$0,68 Unit Price incl. VAT
7
Rubber spacer
AP8144158
$2,18 Unit Price incl. VAT
8
Screw w/ flange M5x9
AP8152339
$3,65 Unit Price incl. VAT
9
Fuel pipe
858884
$33,77 Unit Price incl. VAT
10
Breather pipe
895959
$3,59 Unit Price incl. VAT
11
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
12
Screw w/ flange M5x15
AP8152273
$0,16 Unit Price incl. VAT
13
Hex socket screw M5x10
AP8150538
$4,32 Unit Price incl. VAT
14
LH support
858886
$2,10 Unit Price incl. VAT
15
Fuel pump cpl.
B043925
Not Available
16
Rubber spacer *
AP8120663
$9,24 Unit Price incl. VAT
17
Spacer
893273
$2,35 Unit Price incl. VAT
18
screw
576836
$3,03 Unit Price incl. VAT
19
Fixing pin
AP8161127
$5,38 Unit Price incl. VAT
20
Washer 5x20x1,5
AP8150255
$0,16 Unit Price incl. VAT
21
Missing description
2D000385
$768,49 Unit Price incl. VAT
22
Maintenance
B044550
$10,76 Unit Price incl. VAT
23
Fuel level sensor
899068
$171,58 Unit Price incl. VAT
24
Hex socket screw M5x14
B043864
$4,82 Unit Price incl. VAT
25
Hex socket screw M6x20
AP8224470
$0,34 Unit Price incl. VAT
26
Washer 6,4x13x1,5
GU95005306
$0,16 Unit Price incl. VAT
27
Screw w/ flange M6x12
GU98210612
$3,65 Unit Price incl. VAT
28
Support bracket
2B002985
$20,60 Unit Price incl. VAT
29
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
