1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog

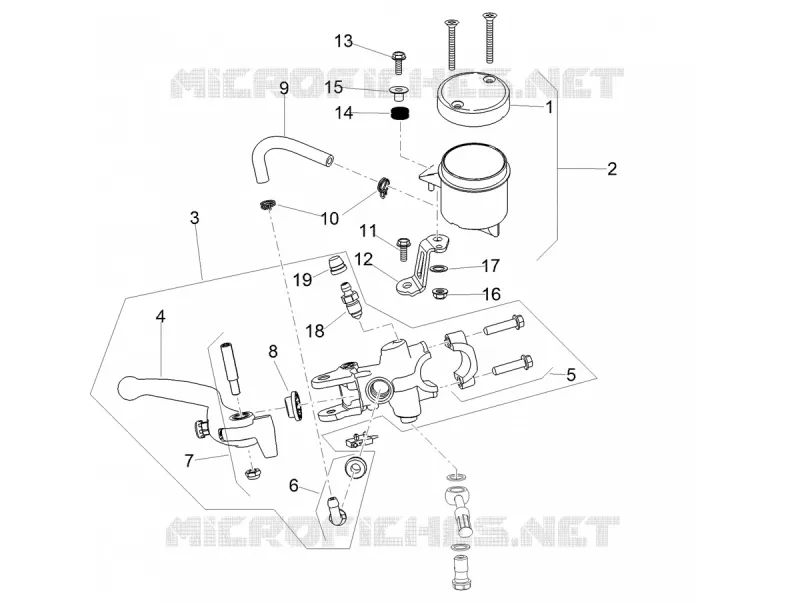

Front master cilinder
6
Parts Diagram
Parts Catalog
Electrical system I
by
Rear brake caliper
Front master cilinder
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Pil brake tank plug
AP8113598
$31,33 Unit Price incl. VAT
2
Oil tank
2B003081
Not Available
3
Fr. brake master cylinder
2B002995
Not Available
4
Front brake lever
2B002986
Not Available
5
Bracket
2B001929
$32,90 Unit Price incl. VAT
6
Rear brake pump union
AP8213057
$6,80 Unit Price incl. VAT
7
Lever pin
AP8133666
$4,00 Unit Price incl. VAT
8
Bleed valve cap
AP8113070
$10,32 Unit Price incl. VAT
9
RESERVOIR OIL TANK-MASTER CYLINDER HOSE
2B003526
$3,27 Unit Price incl. VAT
10
Hose clamp D10,1
AP8101595
$0,32 Unit Price incl. VAT
11
Hex socket screw
AP8150340
$3,65 Unit Price incl. VAT
12
Oil brake tank supp.
2B002993
$11,69 Unit Price incl. VAT
13
Hex socket screw M6x20
AP8152137
$0,23 Unit Price incl. VAT
14
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
15
T bush
AP8221023
$0,93 Unit Price incl. VAT
16
Stainless cap nut M6
AP8150474
$3,65 Unit Price incl. VAT
17
Curved spring washer 6x12
658830
$4,92 Unit Price incl. VAT
18
Air bleed valve
AP8133502
$6,80 Unit Price incl. VAT
19
Bleed valve cap
AP8113230
$14,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
